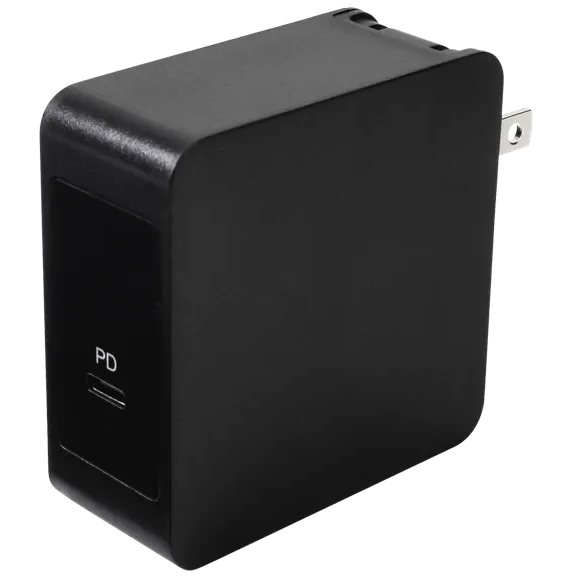

CUI IncSWI60C-V-NB-I40 | SWI60C-N SeriesAdaptador incorporado externo
60 W North America Blade Ac Dc Wall Plug
SWI60C-N Series AC/DC Wall Plug Adapters
CUI Inc’s adapters feature 15 W to 60 W USB power delivery (PD) 3.0 with North American and plugs. These wall plugs offer 3A power up to 60W via USB Type-C® power delivery, providing the user with one power supply and multiple output voltage options. They feature a universal input voltage range, <0.21 W no-load power consumption, and are available in black and white.
Features
- Up to 60 W continuous power
- 5 VDC ~ 20 VDC output capability
- Universal input voltage range
- No-load power consumption: <0.21 W
- Overvoltage, overcurrent, and short-circuit protections
- UL 62368 (SWI60C-N)
- EN 62368 (SWI60C-E) and meets Ecodesign 2019/1782
- PD 3.0 compliant
- Custom designs are available
Applications
- ITE
- Commercial
- Green power technology
Watch this
Power 101: Versatility of USB Power Delivery Adapters
| Compliant | |
| EAR99 | |
| Active | |
| 8504.40.95.20 | |
| Automotive | No |
| PPAP | No |
| Regulated | |
| Wall Mount | |
| AC/DC | |
| 5 | |
| Fixed | |
| 5|9|12|15|20 | |
| 3 | |
| 60 | |
| 3000VAC(Typ) | |
| 2%(Typ) | |
| 5%(Typ) | |
| 100(Max)@240VAC | |
| 1.5 | |
| 47 to 63 | |
| 5(Min)@115VAC | |
| 88(Typ) | |
| North America | |
| Black | |
| USB Type C | |
| No | |
| 150mV(Max)|200mV(Max) | |
| Over Current|Over Voltage|Short Circuit | |
| 0 | |
| 25 | |
| Box | |
| Mounting | Plug in |
| Package Height | 28 |
| Package Width | 65 |
| Package Length | 65 |
| EDA / CAD Models |
