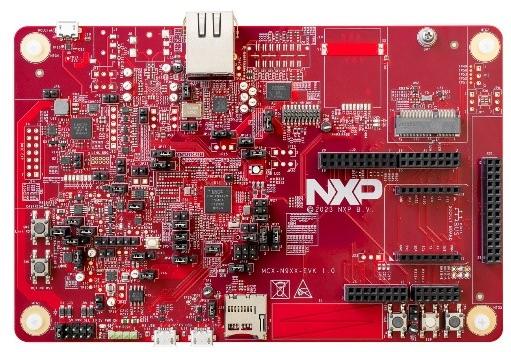

NXP SemiconductorsMCX-N9XX-EVKPlacas y kits de desarrollo del sistema integrado

MCX-N9XX-EVK is a full featured evaluation kit for prototyping of MCX N94 / N54 MCUs. They offer industry standard headers for access to the MCU’s I/Os, integrated open-standard serial interfaces and an on-board MCU-Link debugger with power measurement capability. Additional tools like NXP’s Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Features

• Microcontroller
• •  MCX-N947 Dual Arm® Cortex®-M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash

• Memory Expansion
• •  Micro SD card socket
• •  QSPI flash W25Q64 (64 Mbit)
• •  Support pSRAM, OctalFlash, HyperRAM

• Connectivity
• •  Ethernet Phy and connector
• •  HS USB Micro B connectors
• •  SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
• •  Wi-Fi connector (PMOD/mikroBUS, DNP)
• •  FS USB Micro B connector
• •  M.2 connector
• •  CAN connector

• Debug
• •  On-board MCU-Link debugger with energy monitor circuit
• •  JTAG/SWD connector

• Sensor
• •  P3T1755 I3C/I²C temp sensor, FXLS8964 3-axis accelerometer, visible light sensor

• Expansion Options
• •  Arduino® Header (with FRDM expansion rows)
• •  FlexIO/LCD Header
• •  Tamper pin header
• •  mikroBUS™

• User Interface
• •  RGB user LED, plus reset, ISP, wake up buttons, touch slider

Evaluation Kit for MCX N94x MCUs

User Guide
