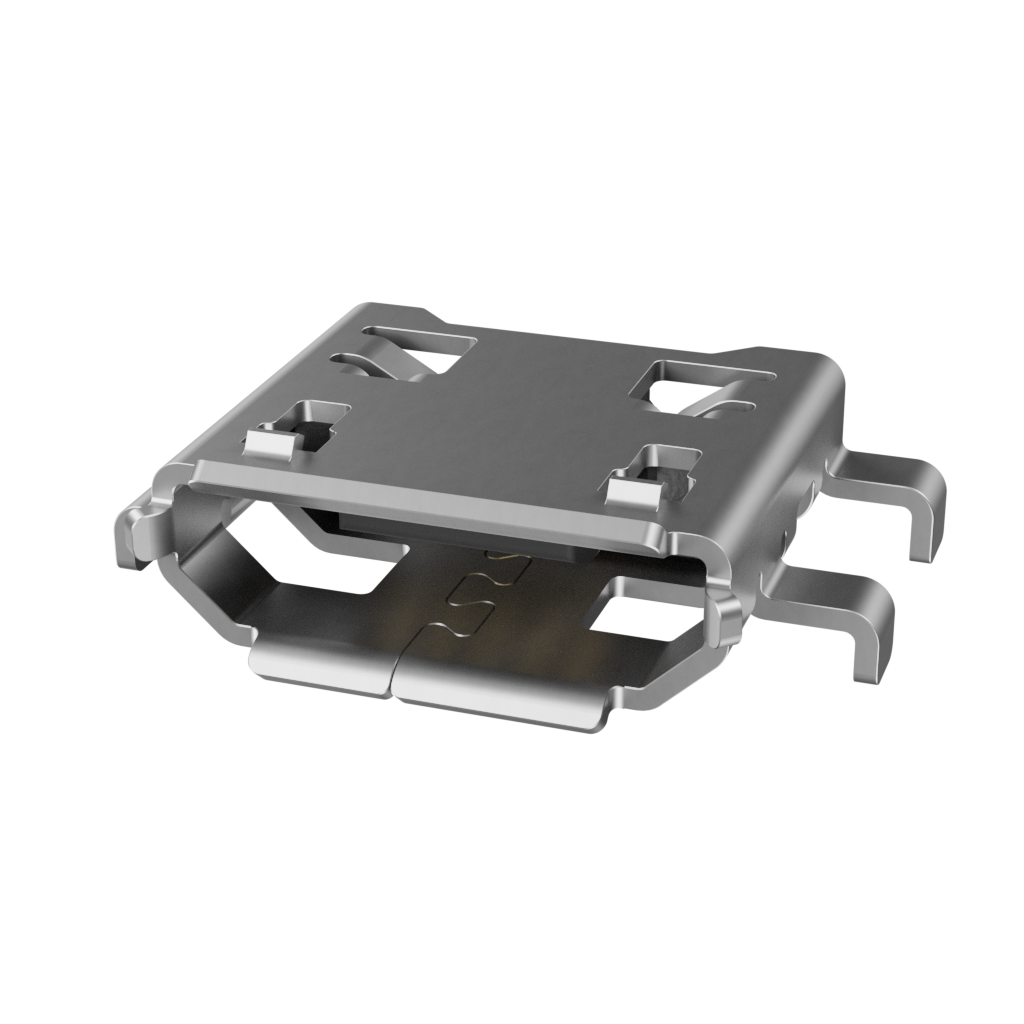

Amphenol Communications Solutions10103593-0001LFConnector USB
Micro USB 2.0, Input Output Connectors, B TYPE MID-MOUNT
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| Automotive | No |
| PPAP | No |
| Micro USB 2.0 Type B | |
| RCP | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| 0.65 | |
| Right Angle | |
| 1.8/Contact | |
| 100VAC | |
| 100 | |
| 30 | |
| 10000 | |
| Stainless Steel | |
| Nickel | |
| -30 | |
| 80 | |
| Tape and Reel | |
| 10.5 | |
| 6.92 | |
| 2.99 | |
| Surface Mount |
Make your project the best it can be by using this micro USB type b 10103593-0001LF audio and video connector from FCI. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 0.65 mm. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. This connector has a single port. It has a right angle body orientation. 10103593-0001LF is housed in thermoplastic. This device has a maximum current rating of 1.8 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature range of -55 °C to 85 °C. Its 5 terminals use the solder termination method. This product is 10.5 mm long, 2.99 mm tall and 6.92 mm deep.
