Littelfuse MXM-Series MEGA®-MIDI® Fuse Holder

Fuse Holders04 Mar 2026

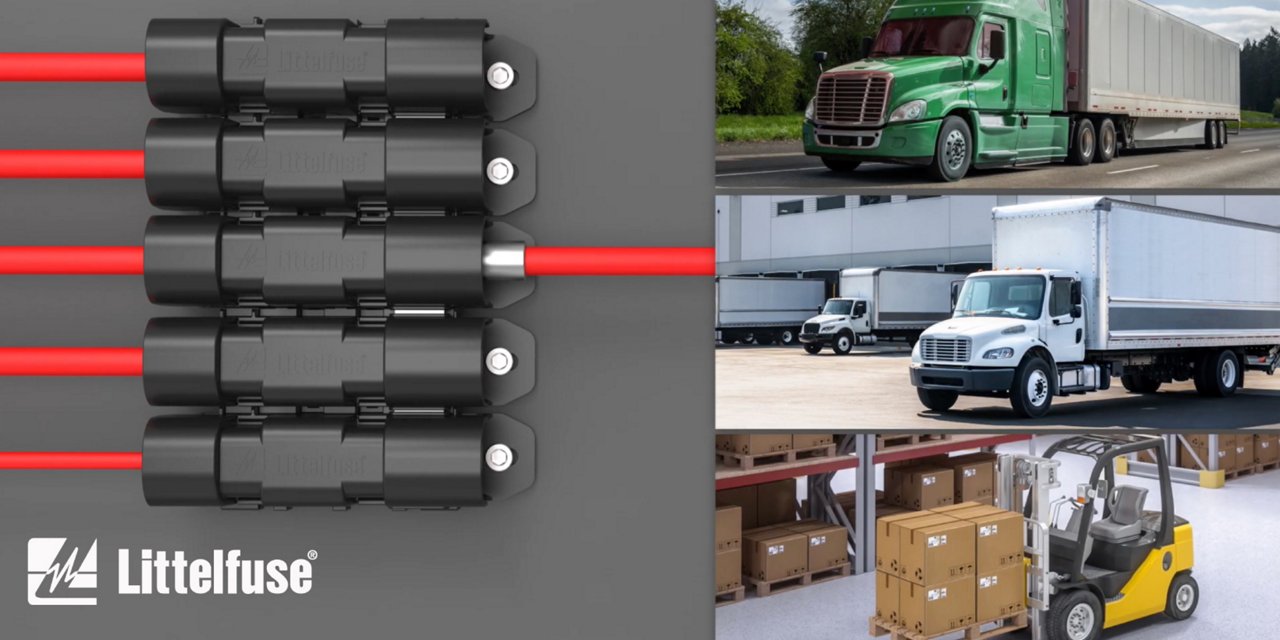

When developing automotive and industrial equipment, care must be taken to ensure that all electrical components are securely mounted. After all, a loose wire or connection at highway speeds could be inconvenient at best – or unsafe at worst. This is especially true for high-current circuits that must be fused, because they usually provide the power that keeps vehicles moving. New MXM-Series MEGA^®-MIDI^® Fuse Holders from Littelfuse provide safe, reliable connection points in dynamic applications, and they feature a patented sliding tab design that accommodates mixing and matching of various fuse sizes in an array. Security meets convenience meets modularity, all in one design.

Thanks to their interlocking pins and sliding tab design features, the MXM Series 120 V 650 A Max Fuse Holders offer a convenient way to build your own high-current fuse array to combine different MEGA and MIDI fuses with various sizes (M6 and M8), pitches, and ratings (up to 120 V; 650 A). This versatile fuse holder for MEGA and MIDI fuses can also be used inline or as a bolt-down fuse holder.

With available M6 and M8 versions, these fuse holders accommodate the full line of Littelfuse MEGA and MIDI fuses, as well as comparable fuses from other vendors.

The included protective cover and available busbars are designed to be compatible with both the M6 and M8 versions of the fuse holder, making it simple to build a fuse array that works for your application. A poka-yoke feature makes combining fuse types mistake-proof, preventing the misuse of the wrong sliding tab in the different fuse holder bases.

Features

Compatible with MEGA and MIDI bolt-down fuses (sold separately) rated up to 650A (MEGA) and 200A (MIDI)
Patented Sliding Tab design accommodates different pitches, allowing the mixing and matching of different fuse ratings in an array
Interlocking pins on the sides of the fuse holder let you connect additional MXM Series fuse holders to create a multi-fuse array configuration
M6 and M8 threaded studs and nuts enable simple fuse installation
Glass-filled thermoplastic body withstands harsh conditions under the hood
Base style includes mounting tabs and M6 holes for exterior mounting
Included UL 94 V-0 rated protective cover snaps into the fuse holder base and can be used with M6 and M8 versions

Applications

Mild Hybrid Vehicles
Heavy-Duty / Medium-Duty Trucks
Material Handling Equipment
Electric Powersports Vehicles
Small Construction and Agricultural Equipment
Golf Carts and Low-Speed Vehicles
Electric Lawn and Garden Equipment

Compatible Fuses

FUSE FAMILY	SERIES	CURRENT RATING (A)	VOLTAGE (V)	PITCH (MM)	HOLE SIZE	PART NUMBERS
MIDI®	498	30-200	32	30	M6	0498xxx.M, 0498xxx.H, 0498xxx.MXTM6 (030, 040, 050, 060, 070, 100, 125, 150, 175, 200)
	BF1	30-200	32	30	M6	153.5631.5xx02 (30, 40, 50, 60, 70, 80), 153.5631.6102 (100), 153.5631.6122 (125), 153.5631.6152 (150), 153.5631.6202 (200)
	BF1 58V	30-200	58	30	M6	142.7010.5xx2 (30, 40, 50, 60, 70, 80), 42.7010.6102 (100), 42.7010.6122 (125), 42.7010.6152 (150), 42.7010.6202 (200)
	70V	30-200	70	36	M6	4998xxx.M-M6 (030, 040, 050, 060, 070, 100, 125, 150, 175, 200)
MEGA®	298	40-500	32	51	M6	0298xxx.ZXA (040, 060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500)
					M8	0298xxx.ZXEH, 0298xxx.UXT (040, 060, 080, 100, 125, 150, 175, 200, 225, 250), 0298xxx.ZXH (300, 350, 400, 450, 500)
	298 LT	125-275	32	51	M8	0298125.ZXBLT (125), 0298xxx.ZXEH-LT (150, 175, 200, 225, 250, 275)
	BF2 32V	100-500	32	51	M8	153.5395.6102 (100), 153.5395.6122 (125), 153.5395.6152 (150), 153.5395.6172 (175), 153.5395.6202 (200), 153.5395.6222 (225), 153.5395.6252 (250), 153.5395.6302 (300), 153.5395.6402 (400), 153.5395.6502 (500)
	BF2 58V	100-300	58	51	M8	142.5395.6102 (100), 142.5395.6122 (125), 142.5395.6152 (150), 142.5395.6172 (175), 142.5395.6202 (200), 142.5395.6222 (225), 142.5395.6252 (250), 142.5395.6302 (300)
	120V	60-650	120	56	M6	0888xxx.UX-2M6 (060, 200, 250, 300, 450, 650)
					M8	0888xxx.UX-2M8 (060, 200, 250, 300, 450, 650)
	60V High Breaking Capacity	450	60	51	M6	0878450.UX-2M6
					M8	0878450.UX-2M8
	70V SF51	60-500	70	51	M6	0998xxx.UX-2M6 (060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500)
					M8	0998xxx.UX-2M8 (060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500)
	70V SF56	60-500	70	56	M6	0898xxx.U-2M6 (060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500)
					M8	0898xxx.U-2M8 (060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500)
	Plus 32V	40-650	32	51	M6	0298xxx.UXP-2M6 (040, 060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500), 0298650.U-2M6 (650)
					M8	0298xxx.UXP-2M8 (040, 060, 080, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500), 0298650.U-2M8 (650)
