Passive components for cutting-edge applications: Yageo resistor technology

Resistors01 Nov 2023
A detailed circuit blueprint featuring technical schematics and diagrams set against a blue gradient background.
View all articles

Resistors are used in a wide variety of different applications and processes across all electronic industries. Designed with highly reliable electrode constructions, resistors provide the backbone of modern electronic functions. YAGEO Group offers case sizes from 0075 to 2512, and a wide range of specialized technologies such as Metal Current Sense, Anti-Surge, High Voltage, Thin Film Precision, Automotive, Miniaturization, High Reliability, and Anti Sulfur.

Common application circuits:

Used as a Voltage Divider:

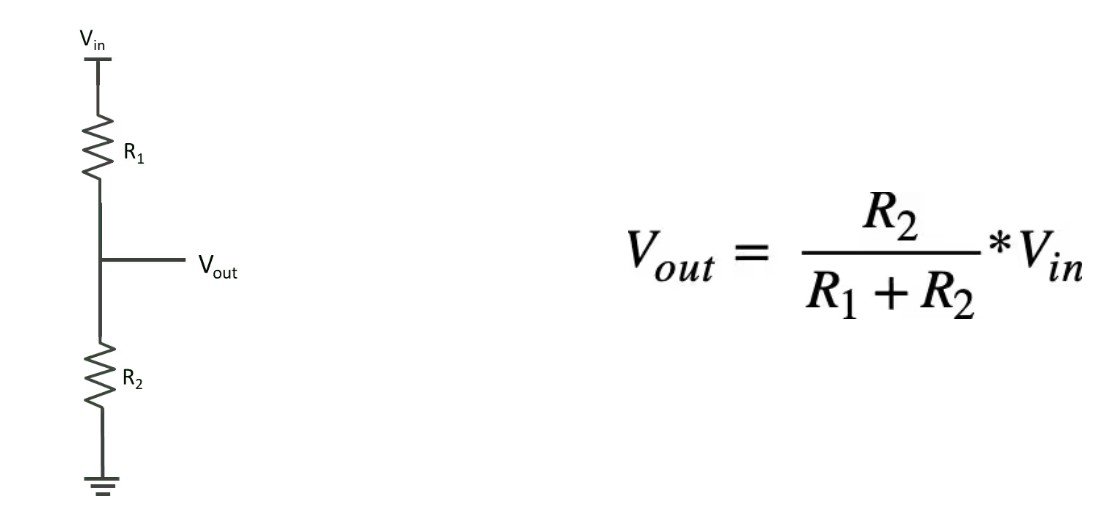

A schematic representation of a voltage divider circuit featuring two resistors, R1 and R2, connected in series.

As an Energy Dissipater:

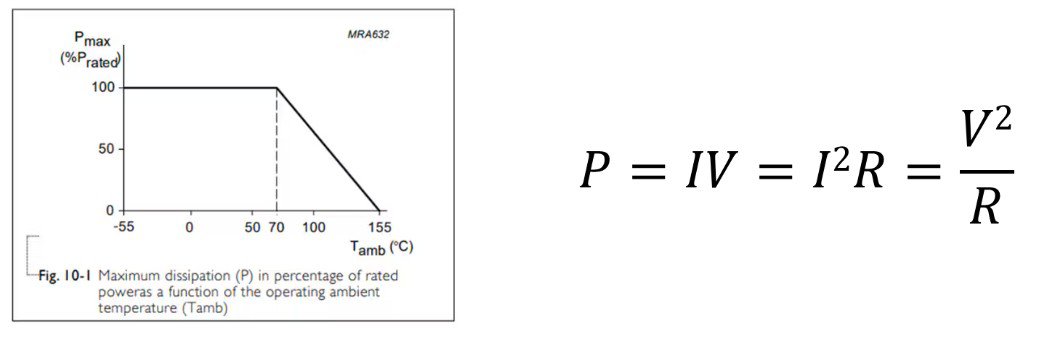

A technical diagram showing the relationship between maximum power dissipation and ambient temperature (Tamb) in degrees Celsius.

As a Current Sensor:

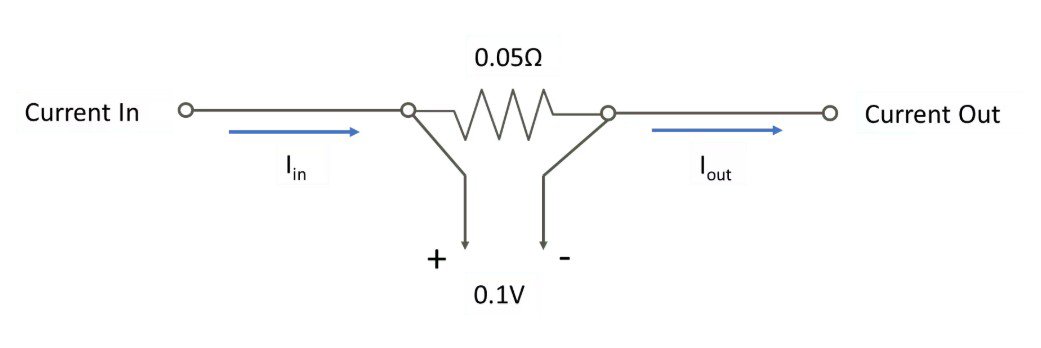

A schematic diagram illustrating an electrical circuit with a 0.05Ω resistor and a 0.1V voltage drop.

Settings Voltage with Resistors (Pull Up or Pull Down):

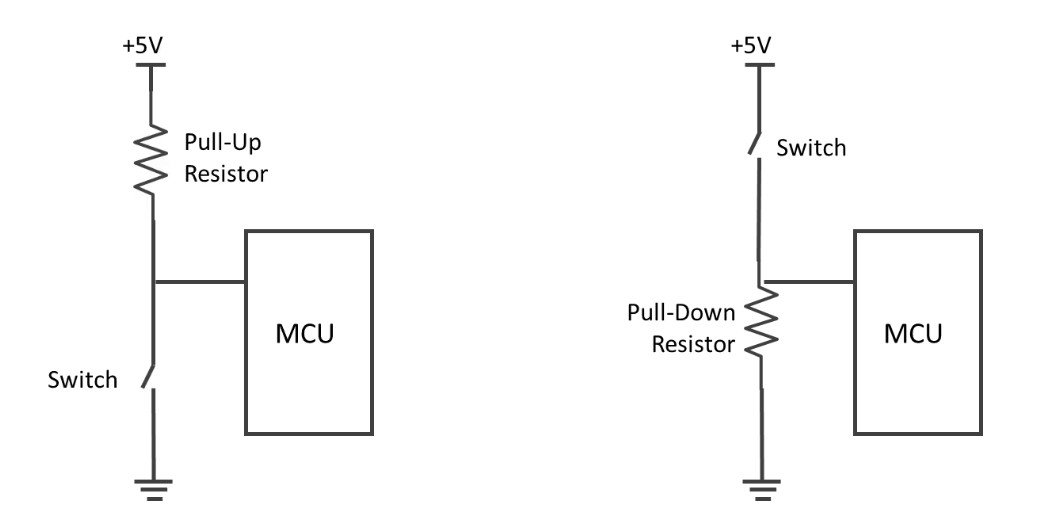

Two circuit diagrams illustrating pull-up and pull-down resistor configurations connected to a microcontroller (MCU).

As a Current Limiter:

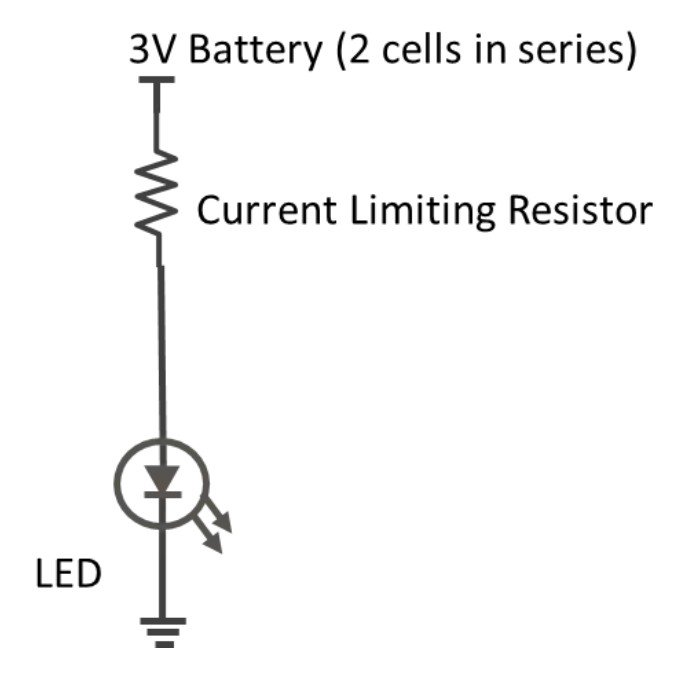

A simple circuit diagram illustrating the connection of an LED to a 3V battery using a current limiting resistor.

For Transmission Line Termination:

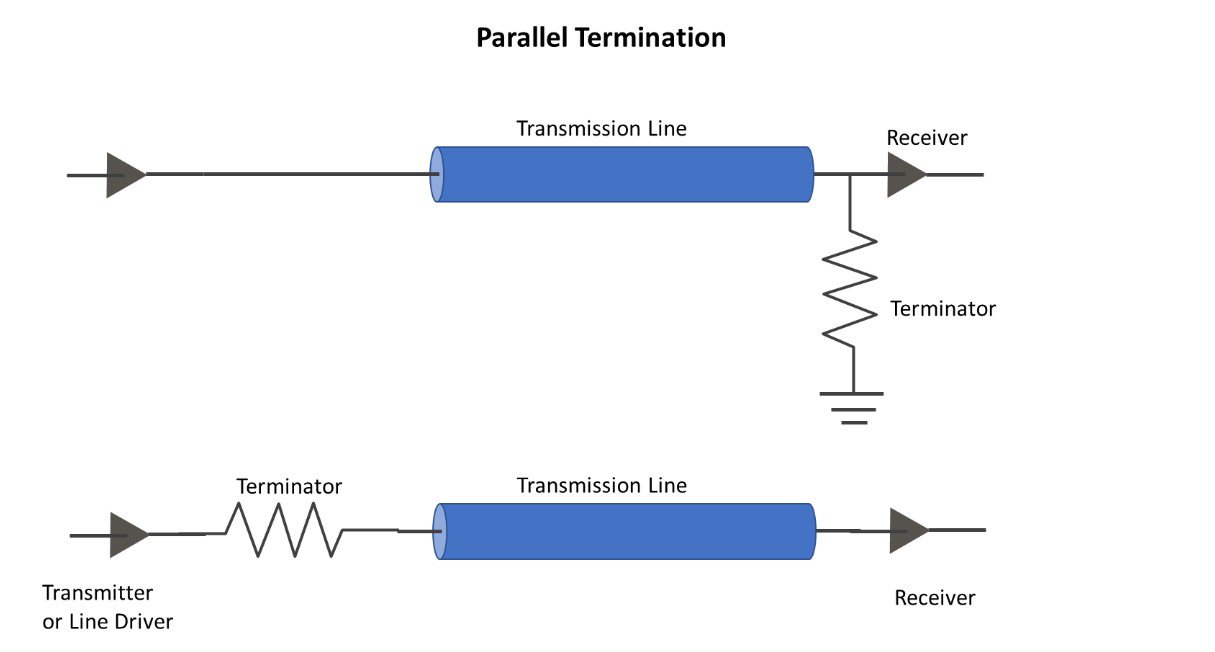

Illustration of a parallel termination setup in electrical circuits.

YAGEO Resistor Part Classifications:

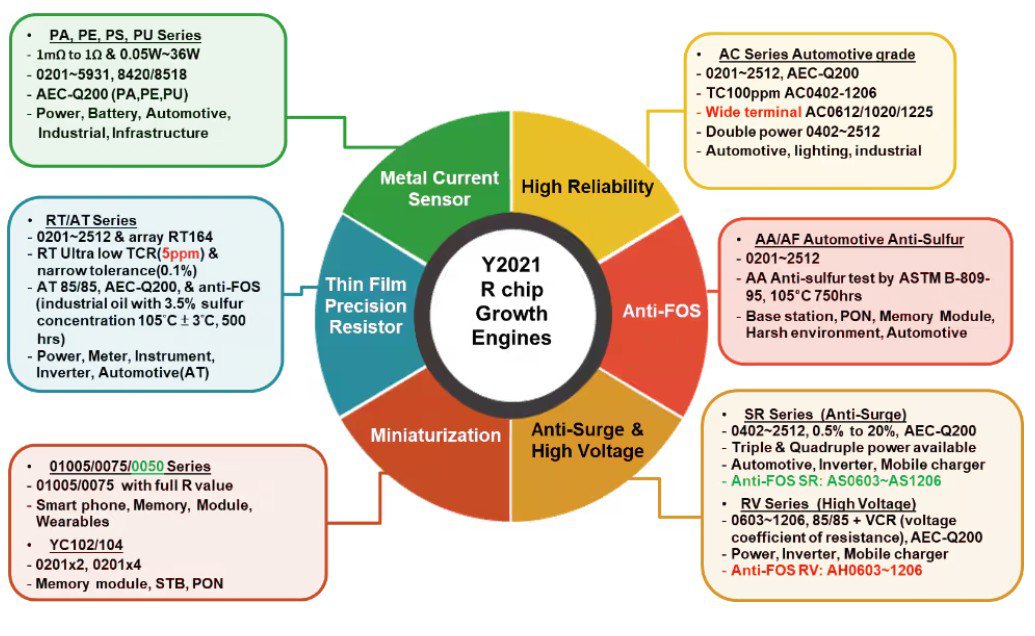

A detailed infographic showcasing the Y2021 R chip growth engines.

Two common resistor technologies that are often compared are thin film and thick film resistors.

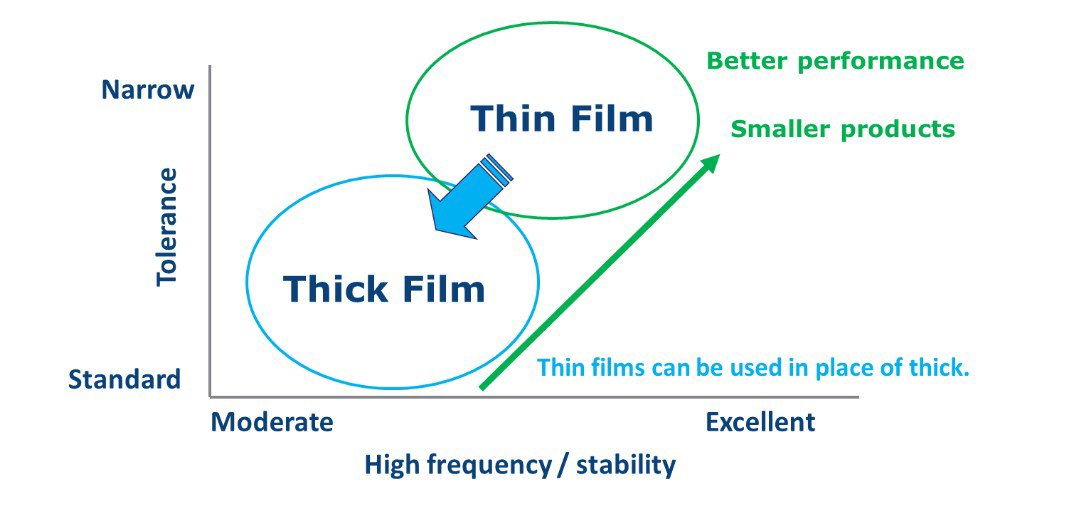

A visual comparison of thin film and thick film technologies, highlighting performance and product size differences.
