ADIN6310/ADIN3310: Industrial Ethernet Time Sensitive Networking Switches
The ADIN3310/ADIN6310 Industrial Ethernet Switches are versatile 3-port and 6-port Gigabit Ethernet Time Sensitive Networking (TSN) switches designed for industrial Ethernet applications.
The ADIN3310/ADIN6310 devices support IEEE TSN standards such as 802.1AS (time synchronization), 802.1Qbv (scheduled traffic), and 802.1CB (frame redundancy) to enable reliable, low-latency communication in complex networks. With SGMII and RGMII interfaces, these devices support data rates of up to 1Gbps and include built-in redundancy protocols like HSR and PRP for high availability.
The ADIN3310/ADIN6310 Ethernet switches integrate enhanced security features and can handle VLAN remapping, IGMP snooping, and per-stream filtering. The devices' low power consumption and flexible host interface options (Ethernet or SPI) make them suitable for industrial automation, robotics, and smart building applications.
Key Features and Benefits
Ethernet MAC interfaces: 10Mb, 100Mb, or 1Gb per port
6-port: 4x RMII/RGMII/SGMII and 2x RMII/RGMII
3-port: 2x RMII/RGMII/SGMII and 1x RMII/RGMII
SGMII, 1000BASE-SX/1000BASE-LX/1000BASE-KX, and 100BASE-FX
Low-latency layer 2 Ethernet switch:
Deterministic latency from port to port
Cut-through or store-and-forward operation
Traffic types and bridge delay per IEEE/IEC 60802
Standard bridging per IEEE 802.1Q-2018 (tailored)
Each port is nonblocking and Independent
32kB frame buffer per transmit port
4096 VLANs
Time synchronization:
IEEE 802.1AS-2020
IEEE 1588-2019 default profile
IEEE C37.238-2017 energy profile
8ns timestamp resolution
Frames timestamped on ingress or egress
Custom Layer 2 on two ports for PROFINET IRT, EtherNet/IP beacon-based DLR, and POWERLINK (100Mbp)
Packet assist engine offloads the host and manages TSN and switch functions
Portable C drivers for TSN and industrial Ethernet protocols
Secure boot, secure update with anti-rollback
Hardware-based cryptography
Secure host pairing Protocol
Cryptographic authenticity checking
Interfaces to the external host processor:
RMII, RGMII, or SGMII
SPI, dual SPI, or Quad SPI
Power:
3 external power supplies: 1.1V, 3.3V, and VDDIO_x (1.8V, 2.5V, or 3.3V)
Total chip power 60mW per port at 1Gbps, full utilization with VDDIO_B = 1.8V
Package and temperature range:

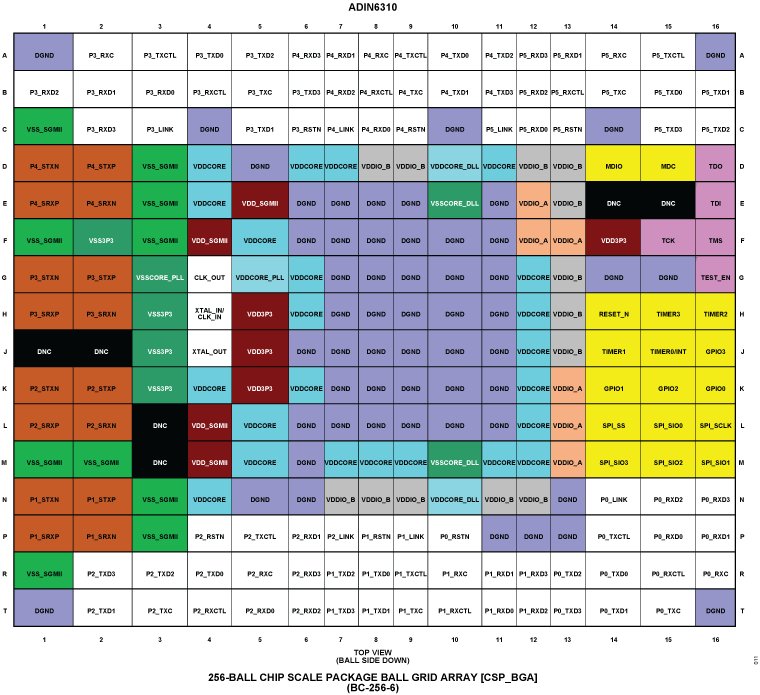

256-ball CSP_BGA, 14mm x 14mm, and 0.8mm pitch

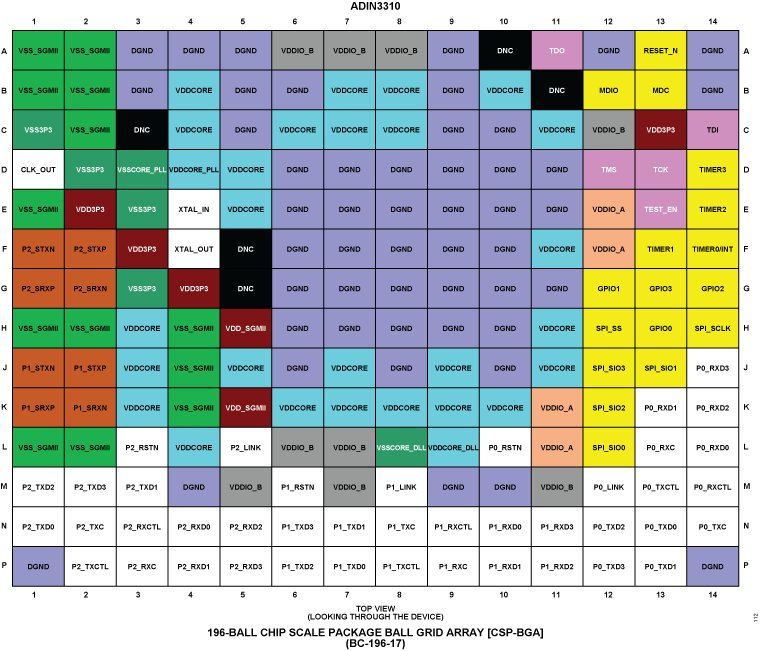

196-ball CSP_BGA, 12mm × 12mm, 0.8mm pitch
Fully specified for -40°C to -85°C and -40°C to 105°C ambient operation
Applications
Factory and process automation
Motion control, robots, and cobots
Energy automation
Transportation
Instrumentation
Building automation
Evaluation Board
The ADIN6310/ADIN3310 can be evaluated with the EVAL-ADIN3310EBZ.

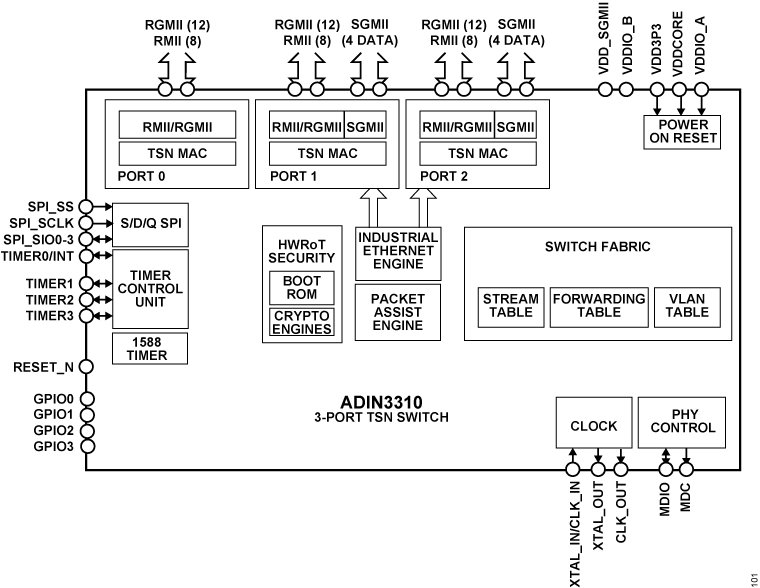

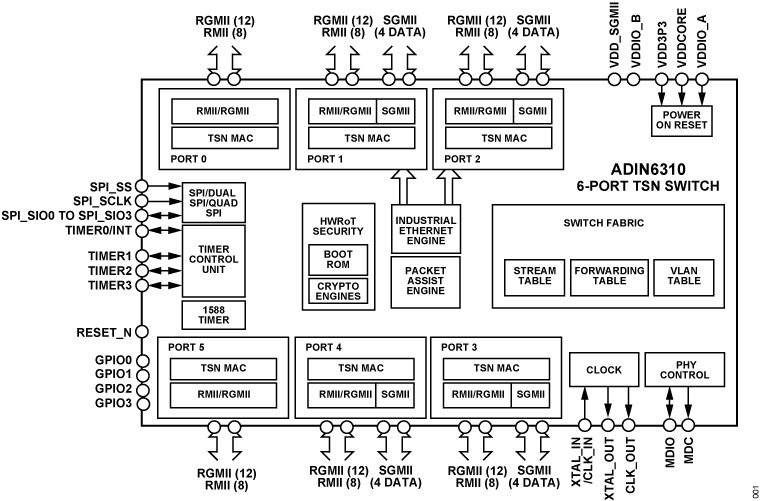

Block Diagrams and Tables
