In-depth comparison and solutions for smart home communication technologies
There are already many smart home devices on the market, and as their prices become more affordable, the acceptance of these products continues to rise. However, the various wireless technologies that support device-to-device and device-to-smartphone communication can be overwhelming. The protocols or standards used by these technologies each have their unique characteristics, advantages, and disadvantages. These include Wi-Fi, Thread, Matter, Zigbee, Amazon Sidewalk, Z-Wave, Bluetooth, and proprietary protocols, which are some of the most common. This article will introduce these smart home technologies and the related solutions launched by Silicon Labs.
Common wireless communication technologies for smart home devices
Currently, there are many wireless communication technologies available for smart home devices, each with its own advantages and characteristics. Below, we will analyze the features of these common wireless communication protocols.
Wi-Fi is the most widely used and common technology for connecting smart home devices. It utilizes the same wireless network as laptops, tablets, and smartphones, offering high-speed data transmission and wide coverage. Wi-Fi is compatible with most smart home devices and platforms, such as Amazon Alexa, Google Assistant, Apple HomeKit, and Samsung SmartThings. Wi-Fi operates on both 2.4 GHz and 5 GHz frequency bands and supports data rates of up to several gigabits per second.
Wi-Fi technology is commonly used in both lined-powered and battery-powered devices (large-capacity disposable batteries, such as alkaline batteries), such as smart speakers, smart displays, smart TVs, smart cameras, smart thermostats, smart locks, smart doorbells, smart plugs, smart switches, and smart bulbs.
The new version of Wi-Fi mesh networks can improve the connection and functionality of smart home devices, especially for outdoor devices or those far from the router. Devices like security cameras, smart lights, or pet trackers, which benefit significantly from the wide network coverage of Wi-Fi mesh networks. Wi-Fi mesh networks are also suitable for outdoor lighting, sensing and control, parking management, environmental management, building and campus management, and even extensive applications in airports.
How to choose the best smart home technology
In fact, smart home protocols or standards are not unique, and it can be difficult to determine which one is the best, as each protocol or standard has its own advantages and disadvantages, and the needs and preferences they fulfill may vary. You can choose the most suitable smart home protocol or standard based on your actual requirements.
For example, if you want to add more smart home devices in the future, you need to ensure that your smart home system can adapt to future needs and be compatible with an increasing number of devices. Wi-Fi technology is a great choice. Wi-Fi is ubiquitous and compatible with many devices, making it a versatile and scalable solution.
If compatibility and interoperability with existing or preferred platforms, voice assistants, or apps must be considered, Matter is the best choice. If you need to extend transmission distances and cover both indoor and outdoor smart home devices, Z-Wave technology is undoubtedly a strong contender for smart home technologies that need extended transmission range and larger coverage. Z-Wave operates in the sub-GHz frequency band and supports mesh networking, where each device can act as a router or repeater, thereby extending network transmission distances and expanding coverage. Additionally, Amazon Sidewalk can also be considered.
From the perspective of smart home devices, power consumption is an important consideration. Zigbee is well-known for its low power consumption and low data rate wireless technology, making it ideal for applications that require long battery life, network reliability, and security. Zigbee devices can form a mesh network, extending transmission distances and expanding coverage, which also helps in achieving efficient power usage.
Moreover, features like Target Wake Time (TWT) and BSS Max Idle in Wi-Fi 6 can also help increase device power efficiency, thereby extending battery life. Devices can use these features to stay in sleep mode for long periods, saving energy and maximizing battery life. On the other hand, Z-Wave LR is designed to extend the transmission distance of Z-Wave networks while maintaining energy efficiency, with a coin cell battery capable of powering devices for up to 10 years, making it a preferred technology for low power consumption and extended battery life.
From the perspective of smart home devices and personal data security and privacy, Matter is renowned for supporting a wide range of device types and providing end-to-end encryption, device certification, and cloud integration, enhancing the security and privacy of smart home devices. Z-Wave also provides encryption and device authentication, but lacks built-in cloud services. When considering the cost and complexity of setup and maintaining smart home devices, Matter technology undoubtedly leads the way.
IoT and smart home device development toolkits supporting multiple protocols

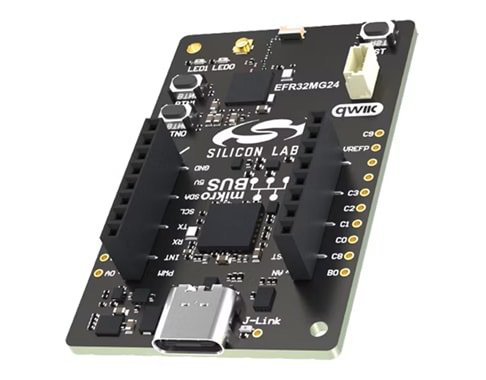

To accelerate the development of IoT and smart home devices, Silicon Labs has launched the xG24-EK2703A development toolkit (EFR32xG24 Explorer Kit), a small form factor development and evaluation platform based on the EFR32MG24 System on Chip (SoC). The EFR32xG24 Explorer Kit focuses on rapid prototyping and concept creation for 2.4 GHz wireless protocols in IoT applications, supporting wireless protocols such as Bluetooth Low Energy (BLE), Bluetooth Mesh, Zigbee, Thread, Matter, and proprietary products.
Key features of the xG24-EK2703A development toolkit include a built-in USB interface, an onboard SEGGER J-Link debugger, Packet Trace interface, and push buttons. It also supports hardware add-on boards via mikroBus sockets and Qwiic® connectors. Hardware add-on support allows developers to use ready-made boards from mikroE, Sparkfun, AdaFruit, and Seeed Studios to create and prototype applications with various combinations.
The xG24-EK2703A is a small form factor kit, about the size of a breadboard, and includes the xG24 Explorer board (BRD2703A). It features the EFR32MG24B210F1536IM48 low-power wireless SoC with DSP instructions and floating-point unit, supporting high-performance 2.4 GHz radio, integrated 78 MHz 32-bit ARM® Cortex®-M33 core, 1536 kB flash memory, and 256 kB RAM, providing resources for demanding applications while allowing room for future growth.
The EFR32MG24 multi-protocol wireless SoC is an ideal choice for implementing mesh IoT wireless connectivity using Matter, OpenThread, and Zigbee protocols. It is suitable for smart home, lighting, and building automation products. With its high-performance 2.4 GHz RF, low power consumption, AI/ML hardware accelerators, and Secure Vault™ capabilities, IoT device manufacturers can create smart, robust, and energy-efficient products, protecting against remote and local cyber-attacks.
The EFR32MG24 features hardware encryption acceleration for AES128/192/256, ChaCha20-Poly1305, SHA-1, SHA-2/256/384/512, as well as a true random number generator (TRNG), ARM® TrustZone®, secure boot (Root of Trusted Secure Loader), Secure Debug Unlock, DPA countermeasures, and secure key management using PUF technology, ensuring anti-tamper and supporting secure attestation. Target applications include gateways and hubs, sensors, switches, door locks, LED lighting, luminaires, location services, predictive maintenance, glass break detection, wake word detection, and more.
Conclusion
The choice and application of smart home communication technologies are critical to the overall functionality, stability, and scalability of the system. Whether based on Wi-Fi, Zigbee, Bluetooth, Thread, or the emerging Matter standard, each technology has its specific advantages and suitable use cases. As IoT technology continues to advance, future smart home systems will place greater emphasis on interoperability, low latency, high security, and enhanced user experience. The Silicon Labs solutions introduced in this article will assist designers in rapidly developing smart home products, driving the evolution of smarter and more user-friendly homes, and achieving truly intelligent connectivity.
