LT8418: 100V Half-Bridge GaN Driver with Smart Integrated Bootstrap Switch
The LT8418 provides strong current sourcing/sinking capability with 0.6Ω pull-up and 0.2Ω pull-down resistance. It also integrates smart integrated bootstrap switch to generate a balanced bootstrap voltage from VCC with a minimum dropout voltage.
The LT8418 provides split gate drivers to adjust the turn-on and turn-off slew rates of GaN FETs to suppress ringing and optimize EMI performance. All driver inputs and outputs have default low-state to prevent GaN FETs from false turn-on. The inputs of the LT8418, INT, and INB are independent and TTL logic compatible. Meanwhile, the LT8418 performs with a fast propagation delay of 10ns and maintains an excellent delay matching of 1.5ns between the top and bottom channels, making it suitable for high-frequency DC-DC converters, motor drivers, and class-D audio amplifiers. In addition, the LT8418 employs the WLCSP package to minimize parasitic inductance, enabling its wide use in high-performance and high-power density applications.
Key Features and Benefits
- Half-Bridge Gate Driver for GaN FETs
- 0.6Ω Pull-Up Resistance at Top Gate Driver
- 0.2Ω Pull-Down Resistance at Bottom Gate Driver
- 4A Peak Source, 8A Peak Sink Current Capability
- Smart Integrated Bootstrap Switch
- Split-Gate-Driver to Adjust Turn-On/Turn-Off Strength
- Default Low-State for All Driver Inputs and Outputs
- Maximum 15V Voltage Rating at INT and INB Inputs
- Independent INT, INB Inputs with TTL Logic Compatible
- Fast Propagation Delay: 10ns (Typical)
- Propagation Delay Matching: 1.5ns (Typical)
- Balanced Driver Supply Voltage: VBST ≈ VCC = 3.85V – 5.5V
- Undervoltage and Overvoltage Lockout Protections

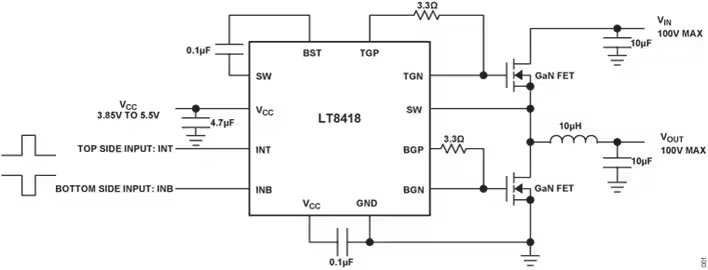

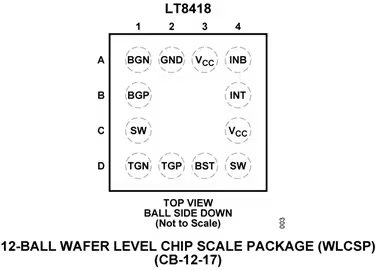

- Small 12-Ball WLCSP Package
Applications
- High Frequency DC-DC Switching Power Converters
- Half-Bridge, Full-Bridge, Push-Pull Converters
- Data Center Power Supplies
- Motor Drivers, Class-D Audio Amplifiers
- Consumer, Industrial, and Automotive
Evaluation Board
The LT8418 can be evaluated with the EVAL-LT8418-BZ or the EVAL-LT8418-AZ.
