MAX22200: 36V, 1A Octal integrated serial-controlled solenoid and motor driver

NPI21 Sep 2022

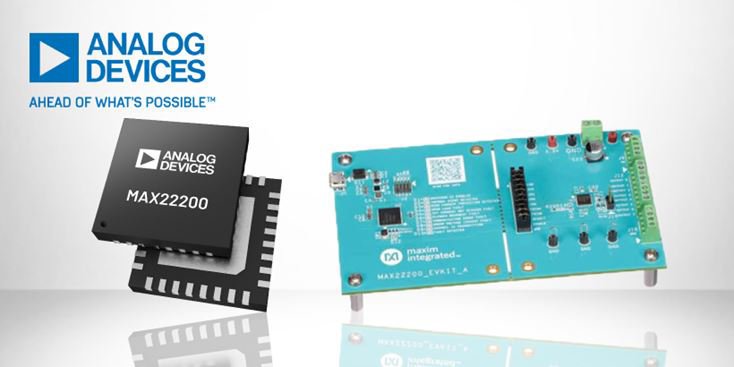

The image features the Analog Devices MAX22200 chip alongside a blue circuit board

The MAX22200 has 8 independently controlled half bridges while saving power in the system design due to the programmable current and drive settings. It also has integrated current resistors that eliminate the need for bulky external power resistors to save space.

Key features and benefits

Power savings: programmable current with closed-loop regulation saves > 50% of power
Flexibility in design: half bridges (channels) are completely independent
Space savings: Integrated Current Sensing (ICS) saves > 30% PCB space and simplifies the layout
