VAR-DVK-OM44_W, Development Kit based on VAR-SOM-OM44 and DART-4460 with Wi-Fi/BT Support

Reference Design using part VAR-SOM-OM44 by Variscite

VAR-DVK-OM44_W Image (Sheet 1 of 10)

Bloack Diagram (Sheet 2 of 10)

VAR-SOM-OM44 (Sheet 3 of 10)

HDMI & SATA (Sheet 4 of 10)

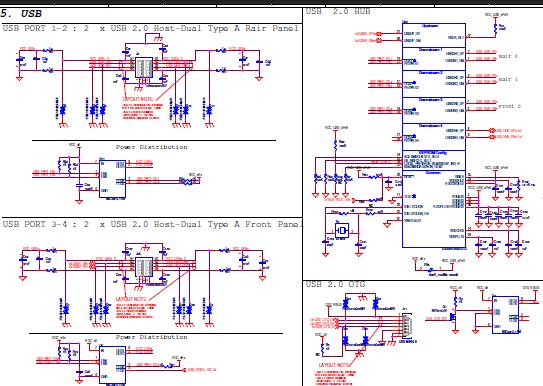

USB Schematic (Sheet 5 of 10)

Peripherals (Sheet 6 of 10)

DVK Display, Touch (Sheet 7 of 10)

DVK Debug Ethernet & Serial (Sheet 8 of 10)

DVK Exp. Connectors (Sheet 9 of 10)

Power & Mechanics (Sheet 10 of 10)

Image 1 / 10

Manufacturer

Application Category
Embedded System
Product Type
Application Processor

Associated Documents

Schematic

For End Products

Daughter Cards

Description

VAR-DVK-OM44_W, Development Kit for Supporting VAR-SOM-OM44 and DART-4460 With Wi-Fi/BT Support, also serves as a complete development kit for evaluation and application development purposes. The DVK provides a great showcase of the VAR-SOM-OM44 connectivity features and performance, also with 7" WVGA LCD with capacitive Touch panel

Key Features

Embedded System Type

SOM
Family Name

OMAP
Core Processor

ARM Cortex-A9

Featured Parts (30)

Featured Parts
Part Number		Manufacturer	Type	Description
	TFP410PAPR	Texas Instruments	Transceivers Misc	Digital Transmitter 3TX 64-Pin HTQFP EP T/R		Buy
	TXS0104ED	Texas Instruments	Level Translators	Voltage Level Translator 4-CH Bidirectional 14-Pin SOIC Tube		Buy
	RT8293AHZSP	Richtek Technology Corporation	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4.5V to 23V Synchronous Step Down Single-Out 0.8V to 20V 3A 8-Pin PSOP EP		Buy
	TXS0104EDR	Texas Instruments	Level Translators	Voltage Level Translator 4-CH Bidirectional 14-Pin SOIC T/R		Buy
	TXS02612RTWR	Texas Instruments	Level Translators	Voltage Level Translator 6-CH Bidirectional 24-Pin WQFN EP T/R		Buy
	TFP410PAP	Texas Instruments	Transceivers Misc	Transmitter 4TX 64-Pin HTQFP EP Tray		Buy
	INA219AIDCNT	Texas Instruments	Power Supply Controllers and Monitors	Monitor 3V to 5.5V 8-Pin SOT-23 T/R		Buy
	KSZ8851SNL	Microchip Technology	Ethernet Controllers	Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 32-Pin QFN EP Tray		Buy
	TXS0104EPWRG4	Texas Instruments	Level Translators	Voltage Level Translator 4-CH Bidirectional 14-Pin TSSOP T/R		Buy
	TXS0104ERGYRG4	Texas Instruments	Level Translators	Voltage Level Translator 4-CH Bidirectional 14-Pin VQFN EP T/R		Buy
	SN75LVDS83BDGG	Texas Instruments	LVDS	LVDS Transmitter 0.45V 56-Pin TSSOP Tube		Buy
	INA219AIDR	Texas Instruments	Power Supply Controllers and Monitors	Monitor 3V to 5.5V 8-Pin SOIC T/R		Buy
