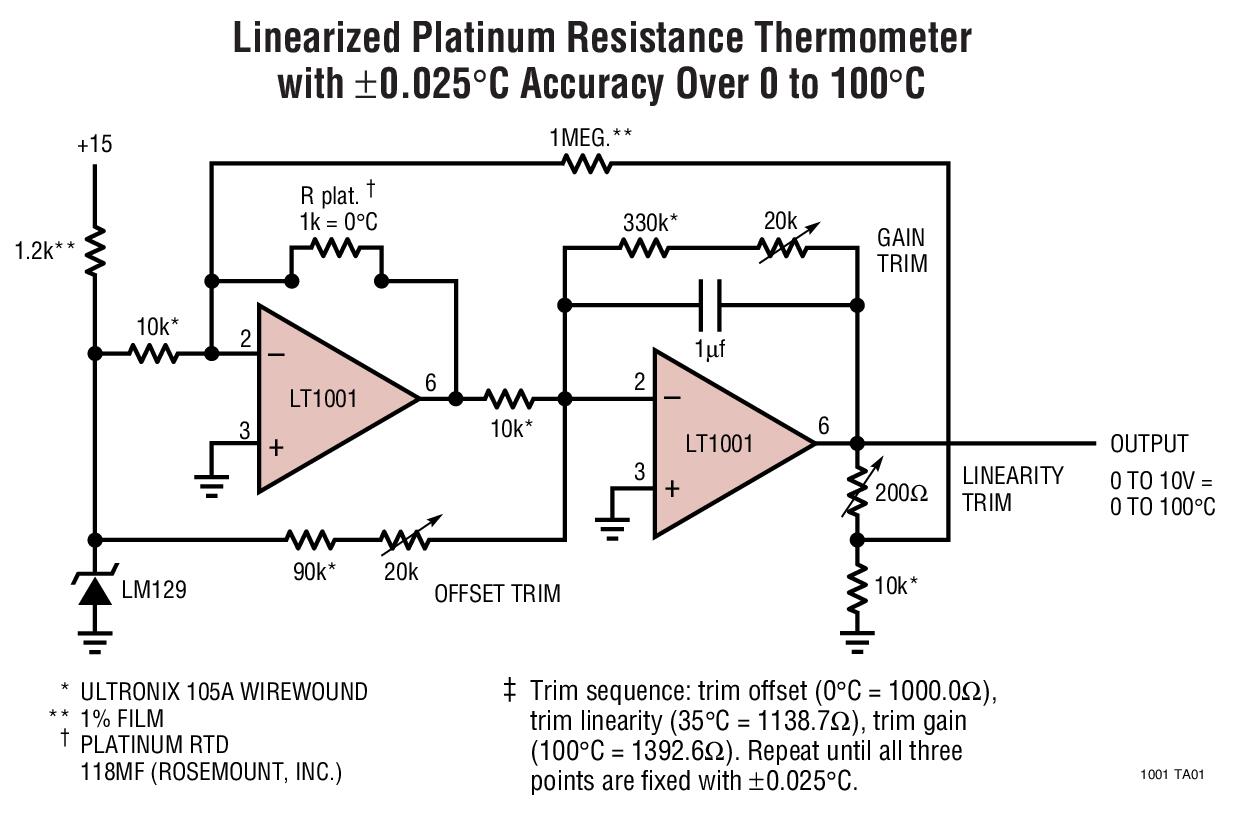

Typical Application for LT1001 - Precision Operational Amplifier

Reference Design using part LT1001 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Amplifiers and Comparators
  • Product Type
    Analog Amplification

Associated Documents

For End Products

  • Data Acquisition System
  • Level Setting
  • Strain Gauge
  • Thermocouple

Description

  • Typical Application for the LT 1001 significantly advances the state-of-the art of precision operational amplifiers

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
LT1001CS8#TR Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin SOIC N T/R Buy
LT1001CS8 Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin SOIC N Buy
LT1001ACN8#PBF Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin PDIP N Tube Buy
LT1001CN8#PBF Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin PDIP N Tube Buy
LT1001CN8 Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin PDIP N Buy
LT1001CS8#PBF Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin SOIC N Tube Buy
LT1001CS8#TRPBF Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin SOIC N T/R Buy
LT1001ACN8 Analog Devices Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier ±22V 8-Pin PDIP N Buy
