STEVAL-IPE012V3, Single-Phase Energy Meter Evaluation Board with Rogowski Coil Sensor based on STPM01 and STM8L152C6

Reference Design using part STPM01FTR by STMicroelectronics

Enlarge

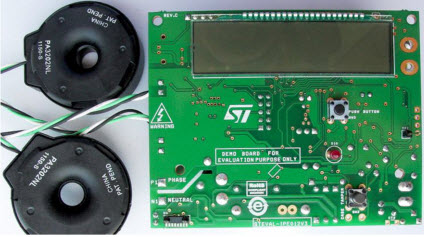

STEVAL-IPE012V3 Image (Sheet 1 of 5)

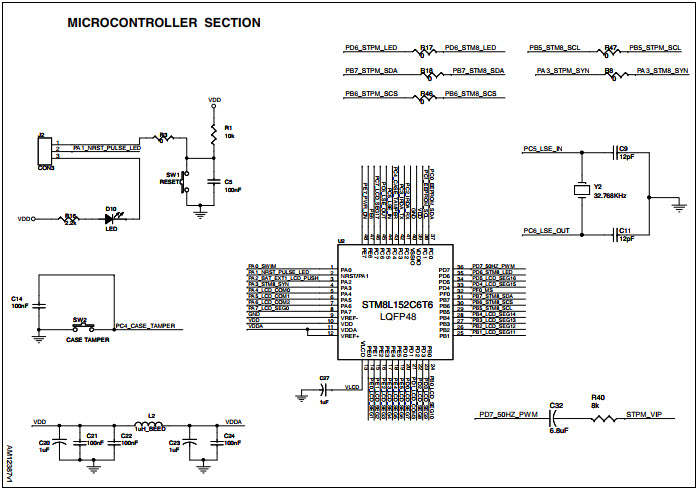

Microcontroller (Sheet 2 of 5)
Battery, Connectors, IRDA, Sensor (Sheet 3 of 5)
STPM (Sheet 4 of 5)
Power Supply (Sheet 5 of 5)
Image 1 / 5

Manufacturer

STMicroelectronics
  • Application Category
    Measurement and Monitoring
  • Product Type
    Energy Meter

Associated Documents

For End Products

  • Energy Management

Description

  • STEVAL-IPE012V3, Demonstration Board implements a single-phase energy meter based on the STPM01 metering IC and STM8L152C6 microcontroller. This demonstration board offers a fully functional single-phase solution with parameter display, tamper management, maximum demand (MD) calculation, EEPROM data logging, and low power management
