POEPHYTEREV-I/-E, Evaluation Board for LM5072 PoE product (capable of up to 24W)

Reference Design using part DP83848IVV by Texas Instruments

Enlarge
Evaluation Board Schematic Part 1. The Ethernet Circuit
Evaluation Board Schematic Part 2: RJ45 connectors and Ethernet Magentics

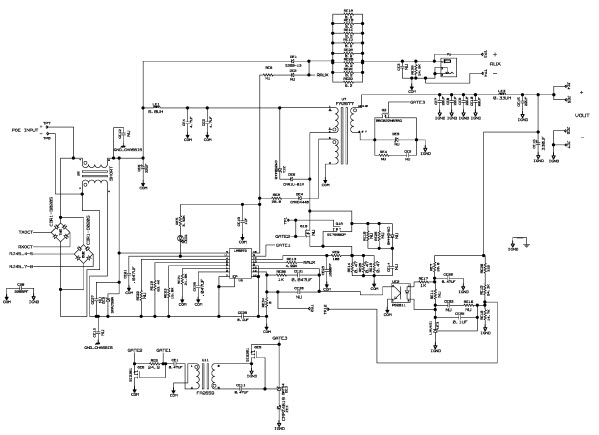

Evaluation Board Schematic Part 3: the PoE Circuit
Image 1 / 3

Manufacturer

Texas Instruments
  • Application Category
    Interface
  • Product Type
    Ethernet Interfaces

Associated Documents

For End Products

  • Embedded PC
  • Factory Automation
  • Industrial Control

Description

  • POEPHYTEREV-I/-E, Evaluation Board is a seamless design demonstrating LM5072 PoE product (capable of up to 24W) and DP83848I (single port 10/100Mb/s) Ethernet PHYTER product

Featured Parts (26)

Featured Parts
Part Number Manufacturer Type Description
LM5072MHX-80/NOPB Texas Instruments Power Over Ethernet - PoE Controllers Power Over Ethernet PD Controller 9V 70V 25W 16-Pin HTSSOP EP Buy
LM5072MHX-80 Texas Instruments Power Over Ethernet - PoE Controllers Power Over Ethernet PD Controller 9V 70V 25W 16-Pin HTSSOP EP Buy
LMV431AIZ/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin TO-92 Bulk Buy
LMV431AIMFX/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R Buy
LMV431AIMF/S7002307 Texas Instruments Voltage References LMV431/LMV431A/LMV431B LOW-VOLTAGE (1.24V) ADJUSTABLE PRECISION SHUNT REGULATORS Buy
LMV431AIMF/S7002307 Texas Instruments Voltage References LMV431/LMV431A/LMV431B LOW-VOLTAGE (1.24V) ADJUSTABLE PRECISION SHUNT REGULATORS Buy
LMV431AIM5X/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 5-Pin SOT-23 T/R Buy
LMV431AIZ/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin TO-92 Bulk Buy
LMV431AIZ/LFT3 Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin TO-92 T/R Buy
LMV431ACM5/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 5-Pin SOT-23 T/R Buy
LM5072MHX-80/NOPB Texas Instruments Power Over Ethernet - PoE Controllers Power Over Ethernet PD Controller 9V 70V 25W 16-Pin HTSSOP EP Buy
LMV431AIMF/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R Buy
