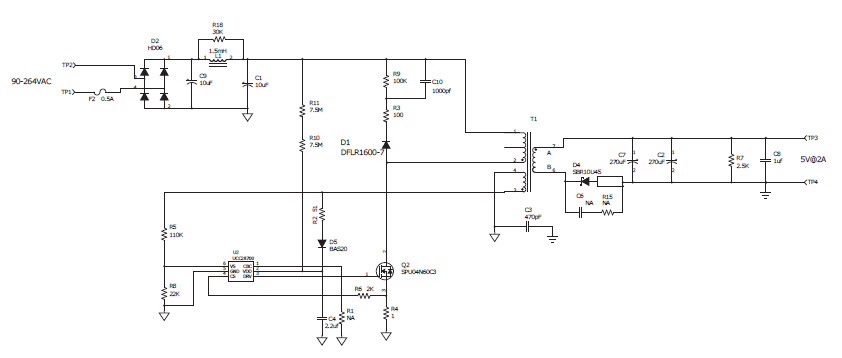

PMP4351, 5V@2A adapter with universal input range

Reference Design using part UCC28700 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    AC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Consumer Electronics

Description

  • PMP4351, 5V@2A adapter with universal input range. Reference design demonstrates a low cost 5V2A adapter solution with primary side regulation controller UCC28700 which eliminates Optocoupler. Efficiency > 80% @ 230Vac, 2.) Precise CC and CV control, 3.) Protection features like OCP, SCP and output OVP 4.) Low no-load power <35mW

Key Features

  • Conversion Type
    AC to DC
  • Input Voltage
    90 to 264 (AC) V
  • Output Voltage
    5 V
  • Output Current
    2 A
  • Output Power
    10 W
  • Topology
    Flyback- Quasi Resonant

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
UCC28700DBVT Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 23V 140kHz T/R 6-Pin SOT-23 Buy
UCC28700QDBVRQ1 Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Buck/Flyback 8.45V 140kHz T/R 6-Pin SOT-23 Automotive AEC-Q100 Buy
UCC28700DBVR Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 23V 140kHz T/R 6-Pin SOT-23 Buy
