PMP4326, 12V Input Single Channel 5A RGB LED Driver for DLP Pico

Reference Design using part TPS54620RGY by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Lighting
  • Product Type
    Dimming LED Driver

Associated Documents

For End Products

  • Backplane Distributed Power
  • Broadband Access
  • Communications and Telecom
  • Optical Networking

Description

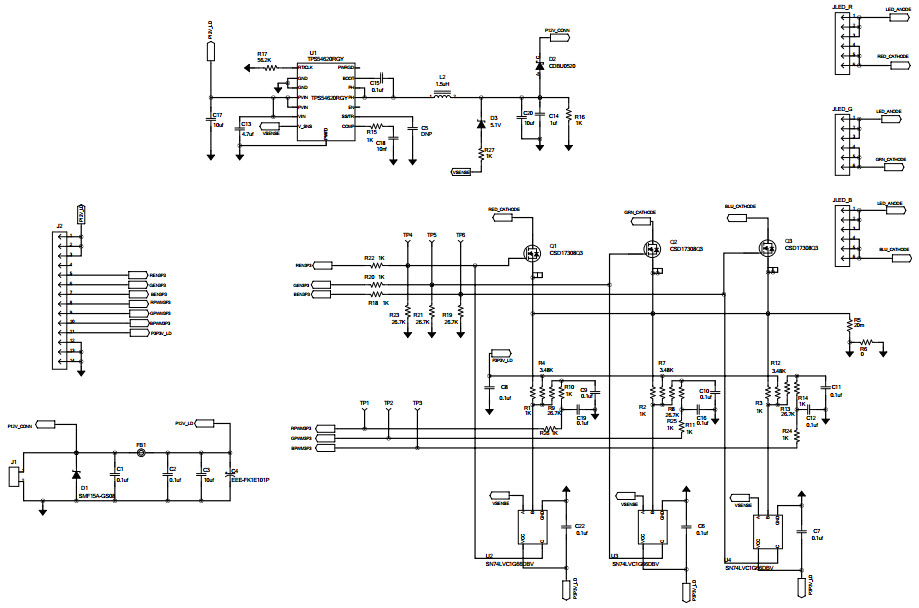

  • PMP4326, demonstrates an 12V input 5A output RGB LED driver for DLP, which includes single DC/DC using TPS54620 to support 3 channel RGB LED driver with PWM dimming control

Key Features

  • Input Voltage
    12 V
  • Output Current
    5 A
  • Number of Derived Elements
    3

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
SN74LVC1G66DBVR Texas Instruments Analog Switch Multiplexers Analog Switch Single SPST 5-Pin SOT-23 T/R Buy
TPS54620RGYR-P Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 6A 14-Pin VQFN EP T/R Buy
TPS54620RGYT Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 6A 14-Pin VQFN EP T/R Buy
TPS54620RGYT-838832001 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 6A 14-Pin VQFN EP T/R Buy
TPS54620RGYR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 6A 14-Pin VQFN EP T/R Buy
TPS54620RGYT-P Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 6A 14-Pin VQFN EP T/R Buy
