PMP4035, 5V Input, 3.3V/2A and 1V/2A Dual Buck Converter Reference Design
Reference Design using part TPS40210DGQ by Texas Instruments
1 / 1
For End Products
- Consumer Electronics
- Set-Top Box
Description

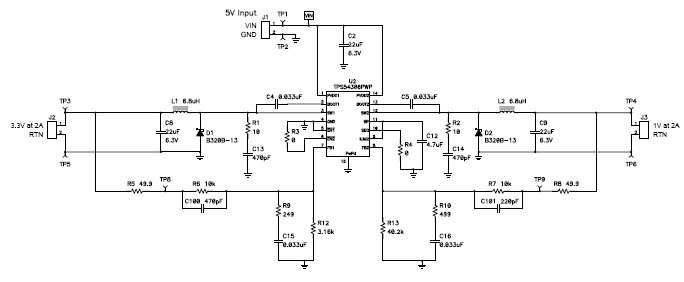

- PMP4035, 5V Input, 3.3V/2A and 1V/2A Dual Buck Converter Reference Design. Reference design uses the TPS54386 dual buck converter to generate 3.3V and 1V outputs from a 5V input. Both outputs can deliver up to 2A. With ceramic output capacitors, this design offers a low cost and compact solution
Key Features
-
Conversion TypeDC to DC
-
Input Voltage4.5 to 5.5 V
-
Output Voltage3.3 V
-
Output Current2 A
-
Output Power6.6 W
-
TopologyBuck- Non Sync
Featured Parts (30)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
INA193AIDBVR | Texas Instruments | Special Purpose Amplifiers | SP Amp Current Shunt Monitor Single 18V 5-Pin SOT-23 T/R | Buy | |
|
TPS28225DRBR | Texas Instruments | Gate and Power Drivers | Driver 6A 2-OUT High Side/Low Side Half Brdg Inv/Non-Inv 8-Pin VSON EP T/R | Buy | |
|
TPS28225DR | Texas Instruments | Gate and Power Drivers | Driver 6A 2-OUT High Side/Low Side Half Brdg Inv/Non-Inv 8-Pin SOIC T/R | Buy | |
|
UCC2897APWR | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin TSSOP T/R | Buy | |
|
TL431AIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | Buy | |
|
|
UCC28610D | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback Tube 8-Pin SOIC | Buy | |
|
FOD817CSD | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R | Buy | |
|
|
INA193AIDBVT | Texas Instruments | Special Purpose Amplifiers | SP Amp Current Shunt Monitor Single 18V 5-Pin SOT-23 T/R | Buy | |
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | Buy | |
|
|
UCC28610DR | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback T/R 8-Pin SOIC | Buy | |
|
|
ISO721MDR | Texas Instruments | Digital Isolators | Digital Isolator Logic 1-CH 150Mbps 8-Pin SOIC T/R | Buy | |
|
TPS71550DCKRG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 5V 0.05A 5-Pin SC-70 T/R | Buy | |
