PMP2459, 12V DC to DC Single Output Power Supply
Reference Design using part TPS23750PWP by Texas Instruments
1 / 1
Associated Documents
For End Products
- PoE Security Camera
- PoE Wireless Access Point
- VoIP Phone
Description

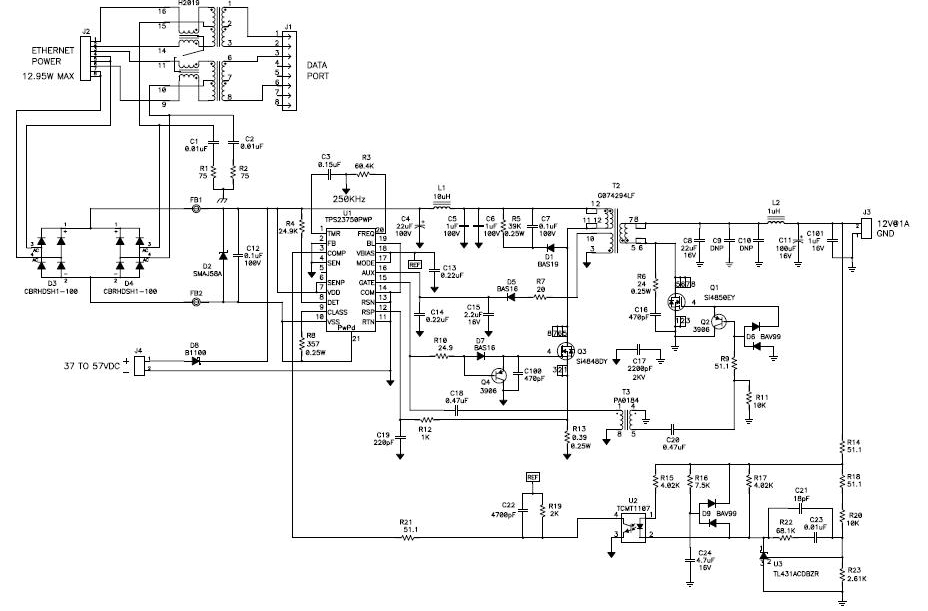

- PMP2459, 12V DC to DC Single Output Power Supply. 12 V,1A Isolated Flyback Converter
Key Features
-
Conversion TypeDC to DC
-
Input Voltage37 to 57 V
-
Output Voltage12 V
-
Output Current1 A
-
Efficiency93 %
-
TopologyFlyback
Featured Parts (6)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | Buy | |
|
TL431ACDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | Buy | |
|
|
TL431ACDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | Buy | |
|
TPS23750PWPRG4 | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | Buy | |
|
|
TPS23750PWPR | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | Buy | |
|
|
TPS23750PWP | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | Buy | |
