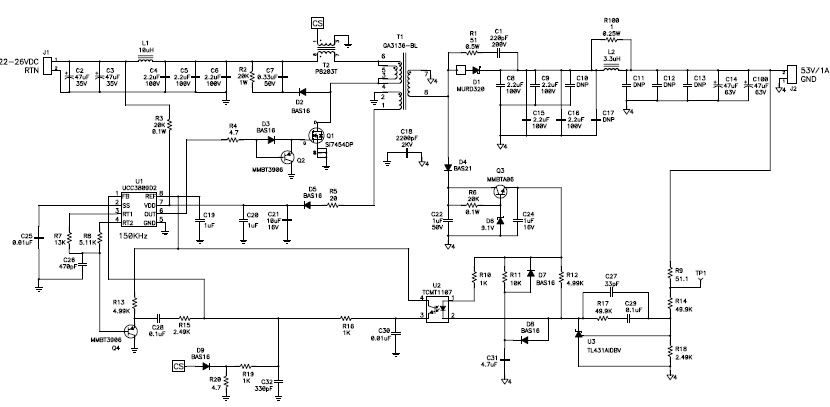

PMP2429, Isolated Flyback (53V@1A) for Power over Ethernet (PoE)

Reference Design using part UCC3809D-2 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Communications and Telecom
  • Power Over Ethernet

Description

  • PMP2429, Isolated Flyback (53V@1A) for Power over Ethernet (PoE). Isolated Flyback (53V@1A) for Power over Ethernet (PoE)

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    22 to 26 V
  • Output Voltage
    53 V
  • Output Current
    1 A
  • Output Power
    53 W
  • Topology
    Flyback

Featured Parts (5)

Featured Parts
Part Number Manufacturer Type Description
TL431AIDBVT Texas Instruments Voltage References V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R Buy
TCMT1107 Vishay Transistor and Photovoltaic Output Photocouplers Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R Buy
TL431AIDBVR Texas Instruments Voltage References V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R Buy
UCC3809D-2-238266101 Texas Instruments PWM and Resonant Controllers Primary Side PWM Controller 0.8mA 1000kHz 8-Pin SOIC Tube Buy
UCC3809D-2 Texas Instruments PWM and Resonant Controllers Primary Side PWM Controller 0.8mA 1000kHz 8-Pin SOIC Tube Buy
