PMP10927, 24V/12W Off-Line DCM Flyback Converter Optimized for Zero-Power at No-Load

Reference Design using part UCC28730D by Texas Instruments

Enlarge

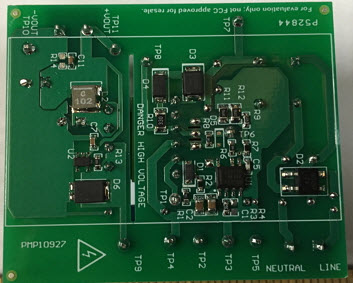

PMP10927 Top Image (Sheet 1 of 3)
PMP10927 Bottom Image (Sheet 2 of 3)
PMP10927 Schematic (Sheet 3 of 3)
Image 1 / 3

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    AC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Consumer Electronics
  • Home Appliances
  • Power Supplies
  • Power Supply

Description

  • PMP10927, 24V/12W Off-Line DCM Flyback Converter Optimized for Zero-Power at No-Load. This design features the UCC28730 flyback controller in conjunction with the UCC24650 Wake-Up monitor to provide CV, CC regulated output with ultra-low stand-by power that exceeds Level VI and CoC Tier 2 specifications for average efficiency and 10% load efficiency. Wake-up signal detection provides fast transient response to large load steps

Key Features

  • Conversion Type
    AC to DC
  • Input Voltage
    85 to 265 (AC) V
  • Output Voltage
    24 V
  • Output Current
    0.54 A
  • Output Power
    12 W
  • Topology
    Flyback

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
UCC24650DBVT Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 4.4V T/R 5-Pin SOT-23 Buy
UCC24650DBVR Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 4.4V T/R 5-Pin SOT-23 Buy
UCC28730D Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 8.1V 90kHz Tube 7-Pin SOIC Buy
