LTC3225EDDB Demo, Low Profile Regulated Dual Cell SuperCAP Charger

Reference Design using part LTC3225EDDB by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

For End Products

  • Power Supplies

Description

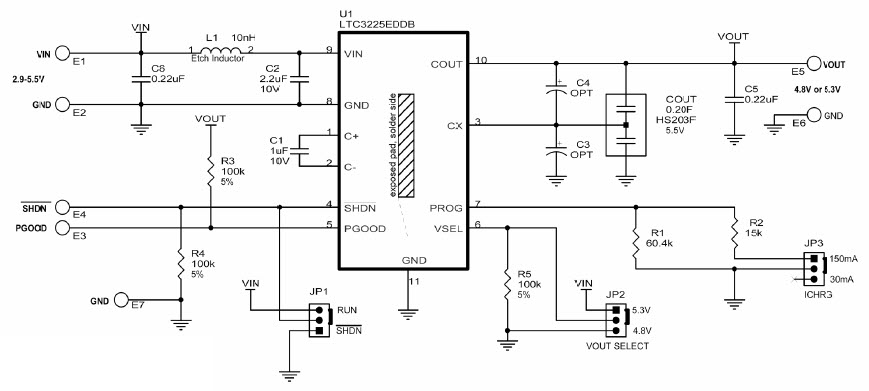

  • Demonstration circuit 1220B is a Low Profile Regulated Dual Cell SuperCAP Charger featuring the LTC3225, Constant-current SuperCAP charger designed to charge two SuperCAPs in series to a fixed output voltage of 4.8V/5.3V from a 2.9V to 5.5V input supply

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.9 to 5.5 V
  • Output Voltage
    4.8|5.3 V

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
LTC3225EDDB-1#TRMPBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
LTC3225EDDB-1#TRPBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
LTC3225EDDB#TRPBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
LTC3225EDDB-1#PBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
LTC3225EDDB#PBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
LTC3225EDDB#TRMPBF Analog Devices Specialized Power ICs and Modules Super Capacitor Charger 10-Pin DFN EP T/R Buy
