Low Cost Glucose Meter Demonstration Using PIC16LF1786 MCU Family

Reference Design using part PIC16LF1786 by Microchip Technology

Enlarge
Glucose Meter Demonstration Image
Glucose Meter Demonstration Block Diagram

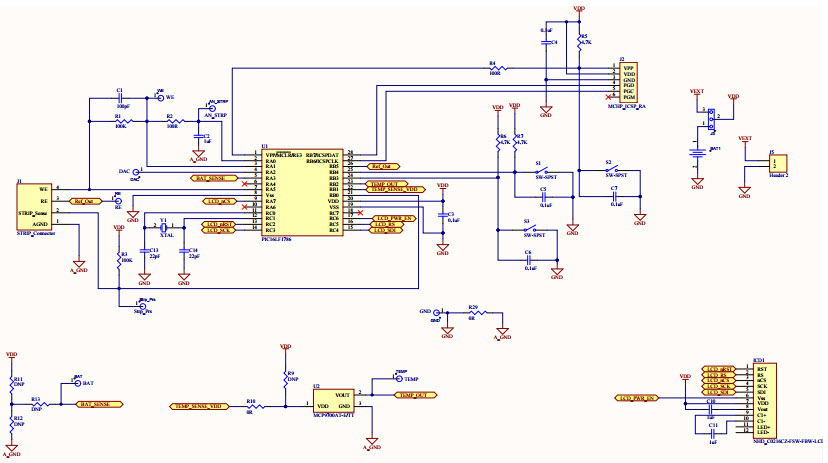

Glucose Meter Demonstration Schematic
Image 1 / 3

Manufacturer

Microchip Technology
  • Application Category
    Embedded System
  • Product Type
    Microcontroller

Associated Documents

For End Products

  • Health System
  • Medical and Healthcare

Description

  • Low Cost Glucose Meter Demonstration. Diabetes mellitus is a growing worldwide health problem. fortunately, the availability of modern glucose meters enable quality diabetes patient care. Glucose meters measure the amount of glucose in the blood, so patients can make decisions about taking necessary medications. The low cost glucose meter demo uses the amperometric method for measuring blood glucose content. The low cost glucose meter was implemented using the PIC16LF1786 MCU device

Key Features

  • Embedded System Type
    MCU
  • Family Name
    PIC16
  • Core Processor
    PIC

Featured Parts (11)

Featured Parts
Part Number Manufacturer Type Description
MCP9700AT-E/TT Microchip Technology Temperature and Humidity Sensors Temperature Sensor Analog 3-Pin SOT-23 T/R Buy
PIC16LF1786T-I/ML Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin QFN EP T/R Buy
PIC16LF1786T-I/SS Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SSOP T/R Buy
PIC16LF1786-E/SO Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SOIC W Tube Buy
PIC16LF1786-E/SS Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SSOP Tube Buy
PIC16LF1786-I/SO Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SOIC W Tube Buy
PIC16LF1786-I/SP Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SPDIP Tube Buy
PIC16LF1786T-I/SO Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SOIC W T/R Buy
PIC16LF1786-E/ML Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin QFN EP Tube Buy
PIC16LF1786-I/ML Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin QFN EP Tube Buy
PIC16LF1786-I/SS Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 14KB Flash 3.3V 28-Pin SSOP Tube Buy
