DC1115, Demonstration Circuit for the LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23

Reference Design using part LTC6101CCS5 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Amplifiers and Comparators
  • Product Type
    Analog Amplification

For End Products

  • Power Management
  • Remote Control

Description

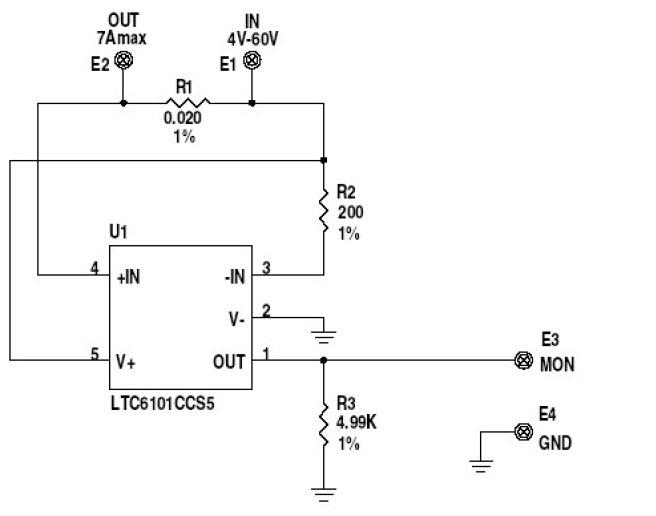

  • DC1115, Demonstration Circuit for the LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23. The Demonstration circuit is a General Purpose High-Side Current-Sense Amplifier featuring the LTC6101. This demo board amplifies an on-board current-sense resistor voltage-drop, providing a precision uni-polar output voltage proportional to load current

Key Features

  • Gain
    25 dB
  • Number of Supplies
    Single
  • Supply Voltage
    4 to 60 V

Featured Parts (5)

Featured Parts
Part Number Manufacturer Type Description
LTC6101CCS5#TRMPBF (CUT REEL) Analog Devices Special Purpose Amplifiers SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 T/R Buy
LTC6101CCS5 Analog Devices Special Purpose Amplifiers SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 Buy
LTC6101CCS5#PBF Analog Devices Special Purpose Amplifiers SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 T/R Buy
LTC6101CCS5#TRPBF Analog Devices Special Purpose Amplifiers SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 T/R Buy
LTC6101CCS5#TRMPBF Analog Devices Special Purpose Amplifiers SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 T/R Buy
