BB-BONE-SERL-03, BeagleBone RS232 Cape, an add-on board for the BeagleBone

Reference Design using part SN65C3221EPW by CircuitCo

Enlarge
BB-BONE-SERL-03 Image (Sheet 1 of 7)
BeagleBone RS232 Cape CANBus (Sheet 2 of 7)
BeagleBone RS232 Cape ProfiBus (Sheet 3 of 7)
BeagleBone RS232 Cape RS232 (Sheet 4 of 7)
BeagleBone RS232 Cape RS485 (Sheet 5 of 7)
BeagleBone RS232 Cape Conn, EEPROM, LED (Sheet 6 of 7)

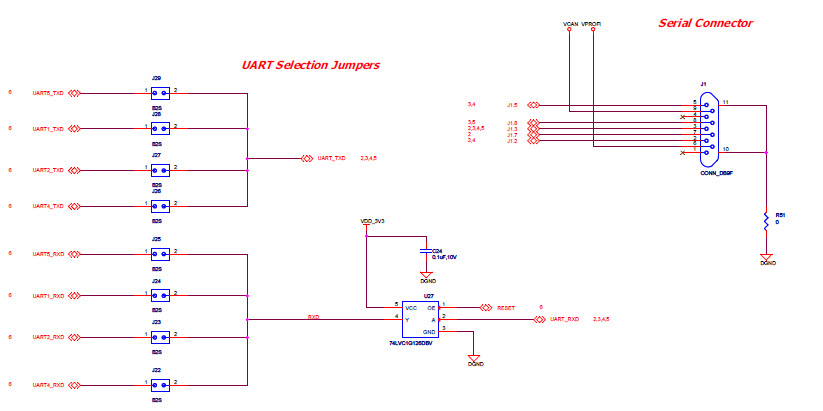

BeagleBone RS232 Cape Serial Conn, UART Jumpers (Sheet 7 of 7)
Image 1 / 7

Manufacturer

CircuitCo
  • Application Category
    Embedded System
  • Product Type
    Application Processor

Associated Documents

For End Products

  • Computers and Peripherals

Description

  • BB-BONE-SERL-03, BeagleBone RS232 Cape provides an RS232 interface to the BeagleBone via a standard D-Sub 9 female serial connector. This connector is located to the side so it doesn't interfere with any capes stacked above it. By default, the BeagleBone RS232 Cape uses UART2 port on the Sitara AM335x for RS232 connection, however, users will have the freedom to choose among UART1, UART2, UART4 and UART5 ports

Key Features

  • Embedded System Type
    MPU
  • Family Name
    Sitara
  • Core Processor
    ARM Cortex-A8
  • Platform
    BeagleBone

Featured Parts (5)

Featured Parts
Part Number Manufacturer Type Description
CAT24C256WI-GT3 onsemi EEPROM EEPROM Serial-I2C 256K-bit 32K x 8 2.5V/3.3V/5V 8-Pin SOIC N T/R Buy
SN74LVC1G126DBVT Texas Instruments Buffers and Line Drivers Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R Buy
SN74LVC1G126DBVR Texas Instruments Buffers and Line Drivers Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R Buy
SN65C3221EPWRE4 Texas Instruments Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin TSSOP T/R Buy
SN65C3221EPWR Texas Instruments Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin TSSOP T/R Buy
