ADN8835CP-EVALZ, Evaluation Board for Evaluating the ADN8835 Ultracompact, 3A Thermoelectric Cooler (TEC) Controller

Reference Design using part ADN8835ACPZ-R7 by Analog Devices

Enlarge
ADN8835CP-EVALZ Image (Sheet 1 of 3)
ADN8835CP-EVALZ Board Schematic (Sheet 2 of 3)

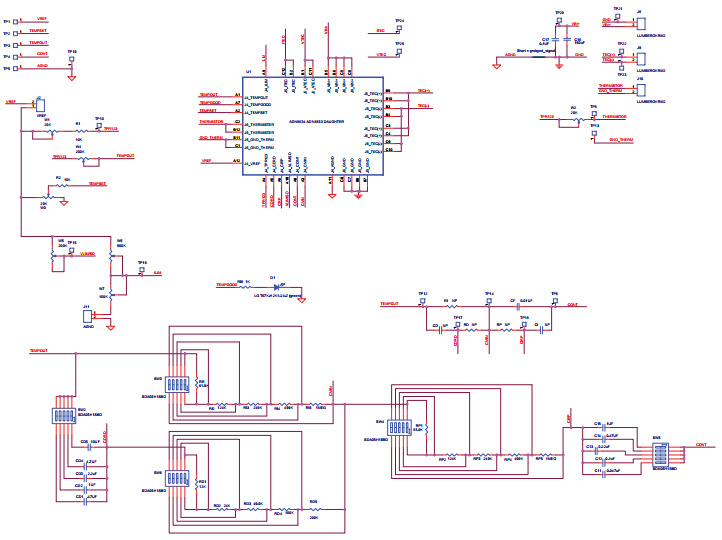

ADN8835 Base Board Schematic (Sheet 3 of 3)
Image 1 / 3

Manufacturer

Analog Devices
  • Application Category
    Measurement and Monitoring
  • Product Type
    Temperature Measurement
Buy

For End Products

  • Temperature Monitoring

Description

  • ADN8835CP-EVALZ, Evaluation Board is designed to work with various TEC modules and thermistors. The ADN8835, which is included on the evaluation board, delivers and controls bidirectional current through a TEC controller using two pairs of the complementary integrated MOSFETs in an H-bridge configuration. The TEC cooling and heating current limits are set to 3A, and the maximum TEC voltage is programmed to 3.5V using two on-board resistor dividers. The temperature set point circuit is optimized to work with a 10 k-ohm negative thermal coefficient (NTC) thermistor. The on-board proportional integral differential (PID) compensation network components can be replaced by soldering different value components that match the temperature control loop characteristics with the thermal load to achieve the required response time and temperature stability

Featured Parts (1)

Featured Parts
Part Number Manufacturer Type Description
ADN8835ACPZ-R7 Analog Devices Sensor and Detector Interface Thermoelectric Cooler 36-Pin LFCSP EP T/R Buy
