ADM00578, Evaluation Board for MCP19114 - Flyback Stand-Alone

Reference Design using part MCP19114-E/MJ by Microchip Technology

Enlarge

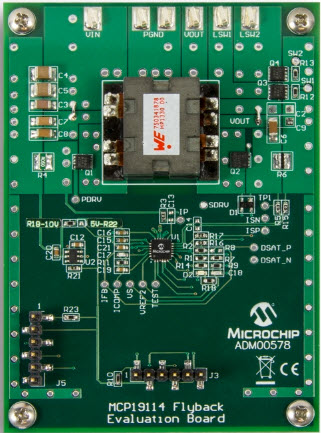

ADM00578 Image
ADM00578 Schematic
Image 1 / 2

Manufacturer

Microchip Technology
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Power Supplies

Description

  • ADM00578, Evaluation Board and Graphical User Interface (GUI) demonstrates the MCP19114 performance in a synchronous Flyback topology. It is configured to regulate load current and is well suited to drive LED loads. Nearly all operational and control system parameters are programmable through the integrated PIC MCU core. The MCP19114 evaluation board comes preprogrammed with firmware designed to operate with the GUI interface. The MPLABX IDE (Integrated Development Environment) can be used to develop and program user-defined firmware, thus customizing it to the specific application. The evaluation board contains headers for ICSPTM (In-Circuit Serial Programming) as well as I2C communication

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    8 to 14 V
  • Output Voltage
    0 to 50 V
  • Output Current
    0.5 A
  • Topology
    Flyback

Featured Parts (1)

Featured Parts
Part Number Manufacturer Type Description
MCP19114-E/MJ Microchip Technology PWM and Resonant Controllers DC/DC Cntrlr Single-OUT Cuk/Flyback/Inverting/SEPIC/Step Up 2000kHz 24-Pin QFN EP Tube Automotive AEC-Q100 Buy
