AD9261-10EBZ, Evaluation Board for the AD9261, 16-Bit Continuous Time Sigma-Delta ADC

Reference Design using part AD9261BCPZ by Analog Devices

Enlarge

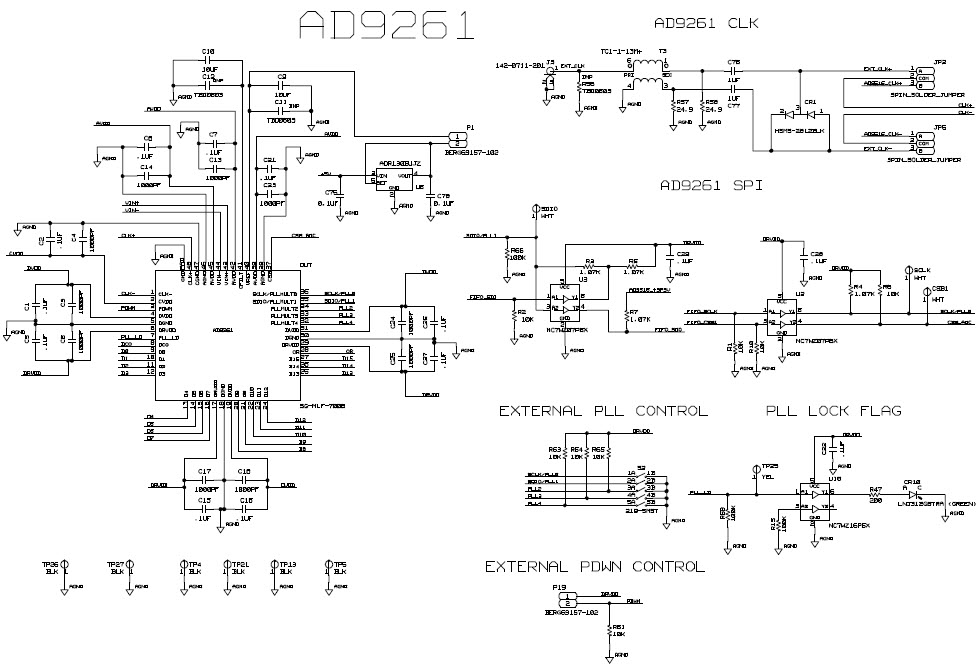

AD9261 ADC Schematic (Sheet 1 of 5)

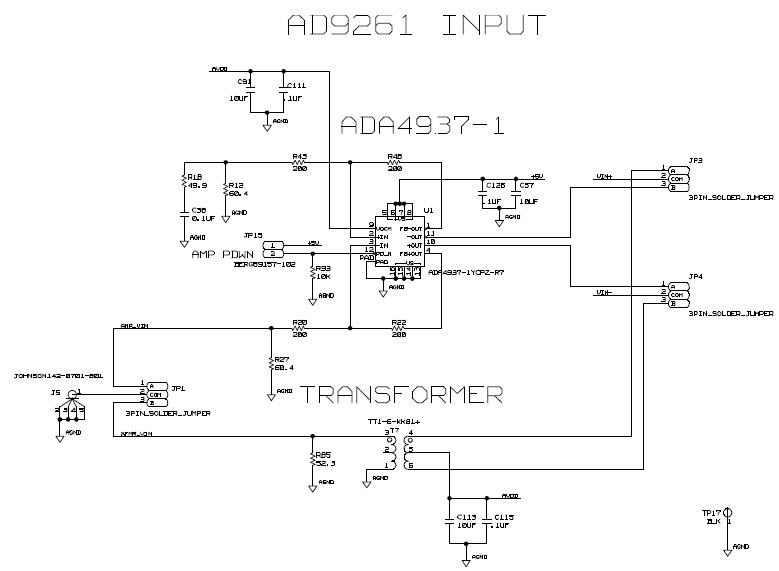

AD9261 Schematic (Sheet 2 of 5)

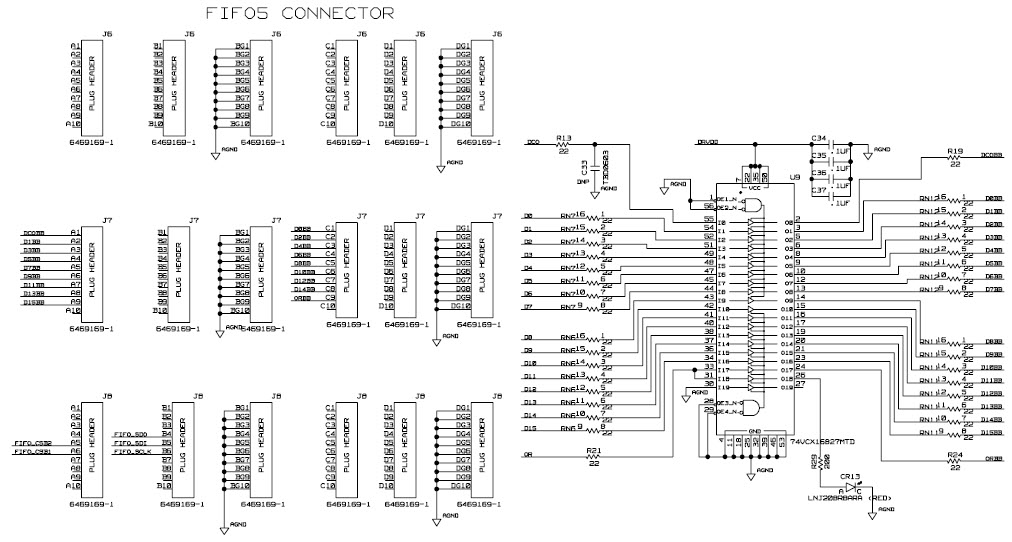

AD9261 Schematic (Sheet 3 of 5)

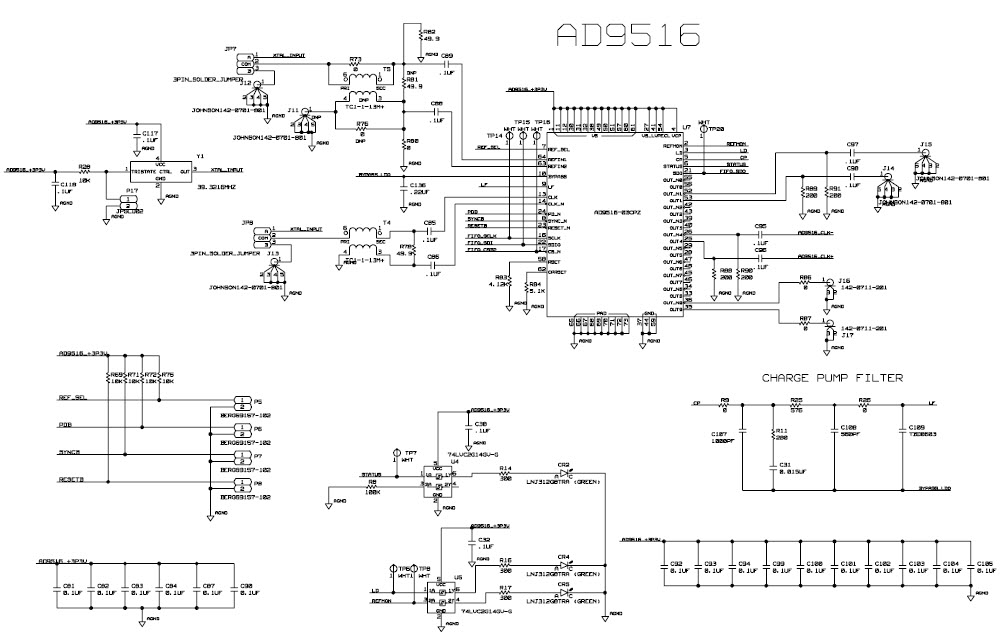

AD9261 Schematic (Sheet 4 of 5)

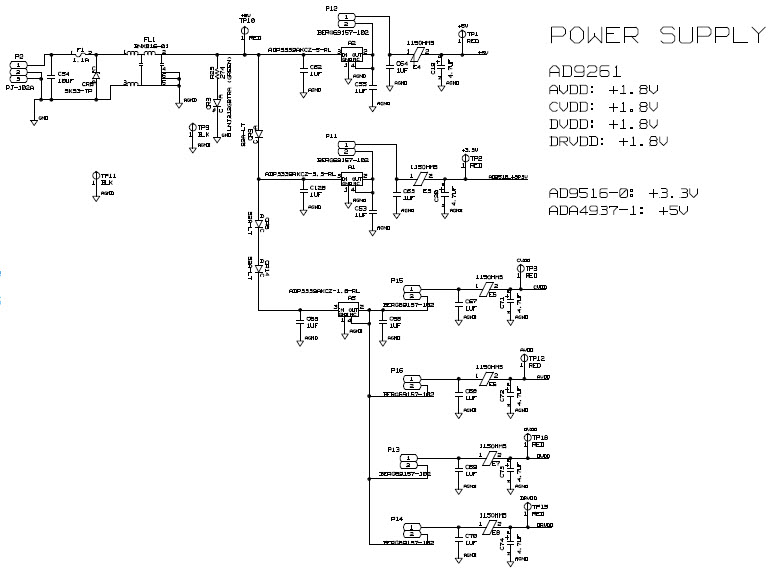

AD9261 Schematic (Sheet 5 of 5)
Image 1 / 5

Manufacturer

Analog Devices
  • Application Category
    Data Conversion
  • Product Type
    Analog to Digital Conversion

For End Products

  • Automatic Test Equipment
  • Data Acquisition System
  • Instrumentation and Measurement
  • Medical Imaging

Description

  • AD9261-10EBZ, Evaluation Board for the AD9261, 16-Bit Continuous Time Sigma-Delta ADC featuring a high performance and wideband continuous time sigma-delta modulator followed by decimation filters and a sample rate converter. An on-chip PLL based clock multiplier and voltage reference are available for ease of implementation and optimal performance. The AD9261 evaluation platform offers flexibility in evaluating and characterizing the performance of the ADC. The evaluation board provides two options to drive the inputs of the ADC: a differential amplifier (AD4937-1) and a transformer path

Key Features

  • ADC Resolution
    16 Bit
  • ADC Sampling Rate
    160M SPS
  • Number of Channels
    1CH

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
ADA4937-1YCPZ-R7 Analog Devices Special Purpose Amplifiers SP Amp DIFF AMP Single 5.25V 16-Pin LFCSP EP T/R Buy
74LVC2G14GV,125 Nexperia Inverters and Schmitt Triggers Inverter Schmitt Trigger 2-Element CMOS 6-Pin TSOP T/R Buy
NC7WZ07P6X onsemi Buffers and Line Drivers Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin SC-88 T/R Buy
AD9516-0BCPZ Analog Devices Clock Generators and Synthesizers Clock Generator 0MHz to 2.4GHz-IN 2950MHz-OUT 64-Pin LFCSP EP Tray Buy
NC7WZ16P6X onsemi Buffers and Line Drivers Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R Buy
ADR130BUJZ-REEL7 Analog Devices Voltage References V-Ref Programmable 0.5V/1V 4mA 6-Pin TSOT T/R Buy
AD9516-0BCPZ-REEL7 Analog Devices Clock Generators and Synthesizers Clock Generator 0MHz to 250MHz-IN 2950MHz-OUT 64-Pin LFCSP EP T/R Buy
BNX016-01 Murata Manufacturing EMI Filters EMI Filter LC-Circuit 15A 25VDC PC Pins Thru-Hole Box Buy
