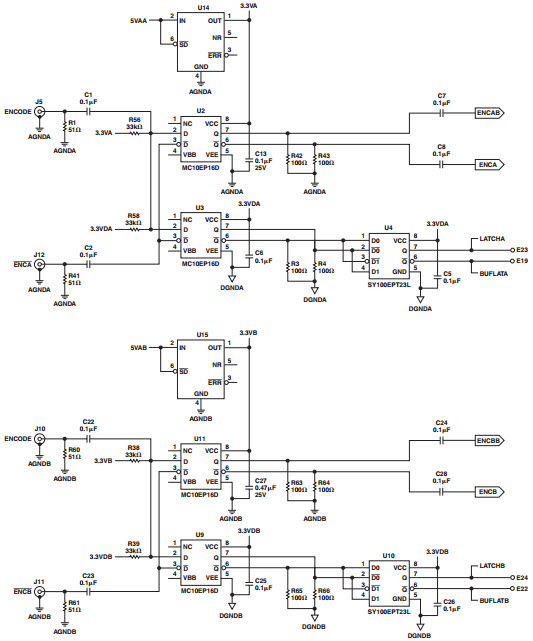

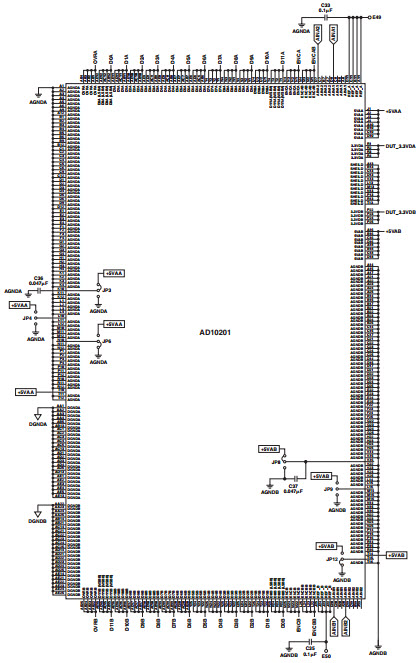

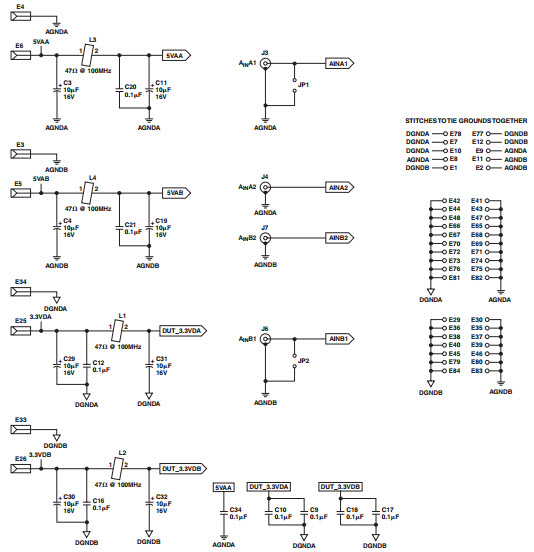

AD10201/PCB, Evaluation Board for Evaluating the AD10201 Dual-Channel, 12-Bit 105 MSPS IF Sampling ADC
Reference Design using part AD10201AB by Analog Devices
1 / 4
For End Products
- Basestation
- Radar System
- Satellite
- WiMAX/Wireless Broadband
Description
- AD10201/PCB, Evaluation Board for the AD10201 offers two complete ADC channels with on-module signal conditioning for improved dynamic performance. Each wide dynamic range ADC has a transformer coupled front end optimized for direct IF sampling. The AD10201 has on-chip track-and-hold circuitry, and uses an innovative architecture to achieve 12-bit, 105 MSPS performance. The AD10201 uses innovative high density circuit design to achieve exceptional performance while still maintaining excellent isolation and providing for board area savings
Key Features
-
ADC Resolution12 Bit
-
ADC Sampling Rate105M SPS
-
Number of Channels2CH
Featured Parts (2)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
SY100ELT23LZG-TR | Microchip Technology | Level Translators | Translator LVPECL to LVTTL 2-CH Unidirectional 8-Pin SOIC N T/R | Buy | |
|
SY100ELT23LZG | Microchip Technology | Level Translators | Translator LVPECL to LVTTL 2-CH Unidirectional 8-Pin SOIC N Tube | Buy | |
