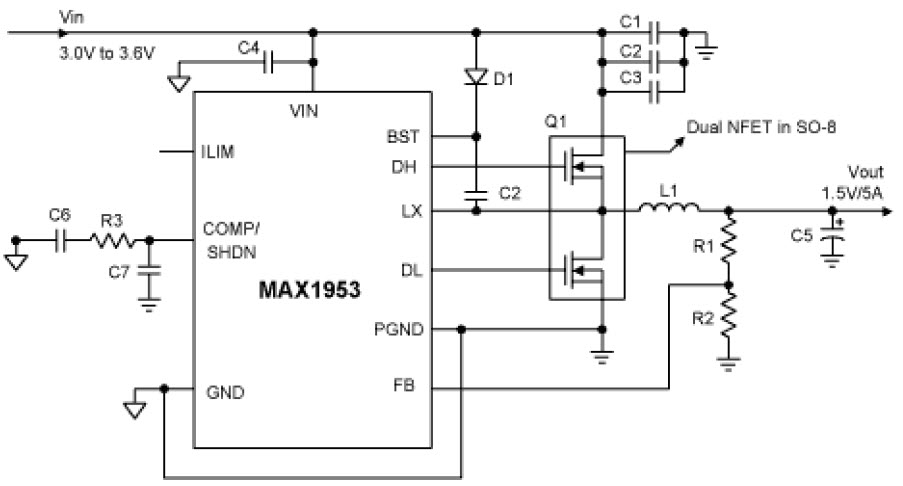

1.5V DC to DC Single Output Power Supply for Computers & Peripherals

Reference Design using part MAX1953 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Computer Cards
  • Computers and Peripherals
  • Graphics Card

Description

  • 1MHz PWM Step-Down Controller, 1.5V/5A GPU Supply

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    3 to 3.6 V
  • Output Voltage
    1.5 V
  • Output Current
    5 A
  • Efficiency
    92 %
  • Topology
    Buck

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
MAX1953EUB+T Analog Devices PWM and Resonant Controllers Current Mode PWM Controller 0.8V to 4.73V 10A 1000kHz 10-Pin uMAX T/R Buy
MAX1953EUB+T Analog Devices PWM and Resonant Controllers Current Mode PWM Controller 0.8V to 4.73V 10A 1000kHz 10-Pin uMAX T/R Buy
MAX1953EUB+ Analog Devices PWM and Resonant Controllers Current Mode PWM Controller 0.8V to 4.73V 10A 1000kHz 10-Pin uMAX Tube Buy
MAX1953EUB+ Analog Devices PWM and Resonant Controllers Current Mode PWM Controller 0.8V to 4.73V 10A 1000kHz 10-Pin uMAX Tube Buy
