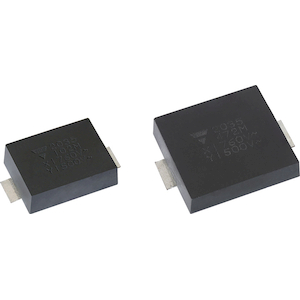

VishaySMDY1472MY5UDRCapacitor Ceramic Single Layer

Industry's First SMD Ceramic Safety Capacitors With Y1 Rating of 500 VAC and 1500 VDC Deliver Industry-High Capacitance to 4.7 nF, While Offering High Humidity Robustness and Reducing Production Costs

Vishay offers a wide range of Ceramic Capacitors (SMD and Leaded) With Stable Characteristics for Various Applications

Advantages of Vishay Ceramic Capacitors

• Wide range of sizes and voltages
• Several termination options
• Robust and reliable design with high stability
• Customized options available

Applications

• High voltage generation and AC mains filtering
• High frequency and high voltage / power
• High reliability, medical, military, and space
• Automotive

SMD Ceramic Safety Capacitors With Y1 Rating of 500 VAC and 1500 VDC

Vishay Intertechnology introduces a new series of surface-mount AC line rated ceramic disc safety capacitors that are the industry’s first such devices to offer a Y1 rating of 500 VAC and 1500 VDC. Designed to withstand harsh, high humidity environments, the Vishay BCcomponents SMDY1 series devices offer industry-high capacitance to 4.7 nF.

• The closest competing devices only offer capacitance up to 1.5 nF and Y1 ratings to 300 VAC, with no DC rating
• Allowing for surface-mount assembly with a reflow soldering process, SMDY1 series capacitors reduce production costs
• Compared to through-hole devices, the capacitors offer a lower profile and eliminate the need for clearance space on the backside of the PCB
• Consist of a copper-plated ceramic disc and feature encapsulation made of flame-resistant epoxy resin in accordance with UL 94 V-0

Key Benefits

• Y1 rating of 500 VAC and 1500 VDC
• High capacitance to 4.7 nF
• High humidity robustness with a Class IIB humidity grade (in accordance with IEC60384-14 annex I) and a moisture sensitivity level of 2a
• RoHS-compliant and halogen-free
