Analog DevicesSCP-ADP7182-EVALZPower Management Development Boards and Kits

The ADP7182 is a CMOS, low dropout (LDO) linear regulator that operates from −2.7 V to −28 V and provides up to −200 mA of output current.

This high input voltage LDO is ideal for regulation of high performance analog and mixed signal circuits operating from −27 V down to −1.2 V rails. Using an advanced proprietary architecture, it provides high power supply rejection and low noise, and achieves excellent line and load transient response with a small 2.2 μF ceramic output capacitor.

The ADP7182 is available in fixed output voltage and an adjustable version that allows the output voltage to range from −1.22 V to −VIN + VDO via an external feedback divider.

The following fixed output voltages are available from stock: −5 V (3 mm × 3 mm LFCSP), −1.8 V, −2.5 V, −3 V, −5 V (TSOT), −1.2 V, −1.5 V, −2.5 V, −5 V (2.00 mm × 2.00 mm LFCSP). Additional voltages are available by special order.

The ADP7182 regulator output noise is 18 μV rms independent of the output voltage. The enable logic is capable of interfacing with positive or negative logic levels for maximum flexibility.

The ADP7182 is available in 5-lead TSOT, 6- and 8-lead LFCSP packages for a small, low profile footprint.

Key Features and Benefits

• •  4 A peak drive output capability
• •  Output power device resistance < 1Ω
• •  Desaturation protection
• •  Isolated Fault output
• •  Soft Shutdown on Fault
• •  Isolated Fault and Ready functions
• •  Low propagation delay 55 ns typical
• •  Minimum pulse width: 50 ns
• •  Operating temperature range: −40°C to +125°C
• •  Output voltage range to 35 V
• •  See data sheet for additional features

Applications

• •  Regulation to noise sensitive applications
• •  Analog-to-digital converter (ADC) and digital-to-analog converter (DAC) circuits, precision amplifiers
• •  Communications and infrastructure
• •  Medical and healthcare
• •  Industrial and instrumentation

Evaluation Board

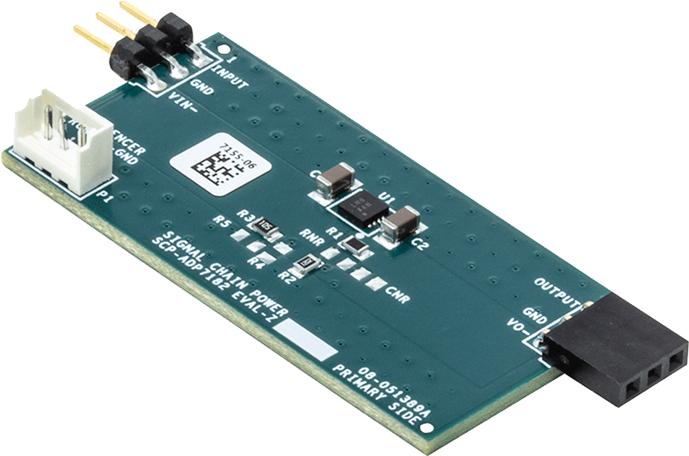

The ADP7182 can be evaluated with the EVAL-ADP7182
