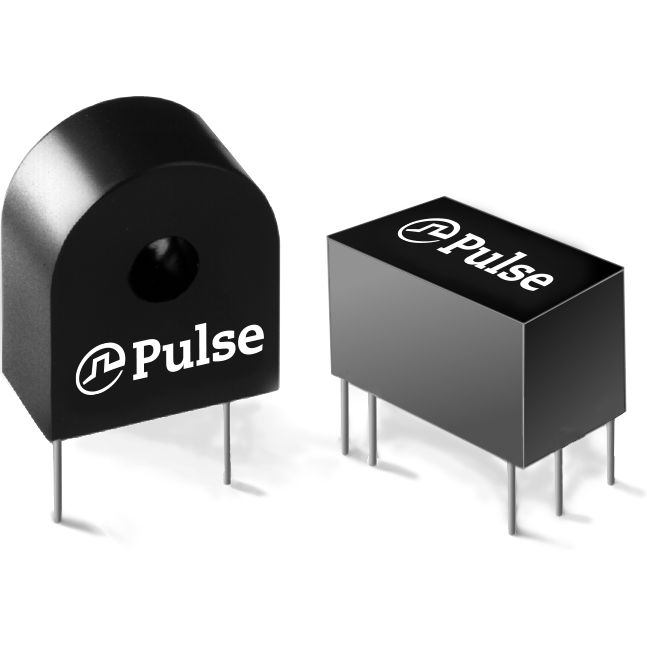

Pulse ElectronicsPE-51686NL | Current TransformerCurrent Transformers
Current Transformer 50:1 3000Vrms 50Ohm Prim. DCR 0.7Ohm Sec. DCR 20000mA Prim. 2 Terminal Pin Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Current Sense Transformer | |
| 50:1 | |
| 20000 | |
| 5000(Min) | |
| 50 | |
| 0.7 | |
| 3000Vrms | |
| Pin | |
| Through Hole | |
| 2 | |
| -40 | |
| 125 | |
| 17.01 | |
| 9.91 | |
| 20.32 |
Reduce large voltage currents to smaller values with this PE-51686NL current transformer from Pulse. It has an operating frequency of 20K to 200K Hz. This current transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 2 terminals. It also has a current sense transformer. This product is 22.86 mm long, 17.78 mm tall and 17.78 mm deep. It has a turn ratio of 1:50. The maximum DCR on the primary side is 50 Ohm, while its 0.7 Ohm on the secondary side.
