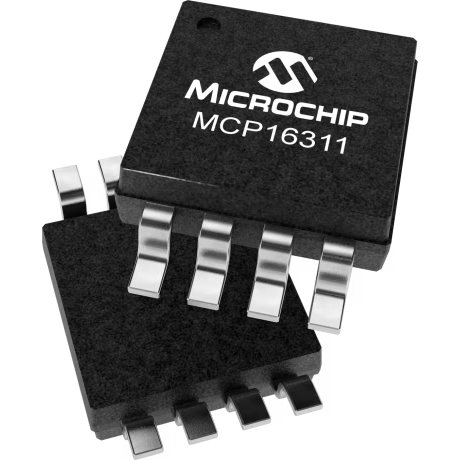

Microchip TechnologyMCP16311T-E/MSDC to DC Converter and Switching Regulator Chip
Conv DC-DC 4.4V to 30V Synchronous Step Down Single-Out 2V to 24V 1A 8-Pin MSOP T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| Synchronous Step Down | |
| Adjustable | |
| 500(Typ) | |
| Yes | |
| 1 | |
| 2 to 24 | |
| 1(Min) | |
| 4.4 | |
| 30 | |
| 44 | |
| 95 | |
| 1@HBM/0.2@MM | |
| -40 | |
| 125 | |
| Extended | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.85 |
| Package Width | 3 |
| Package Length | 3 |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | MSOP |
| 8 | |
| Lead Shape | Gull-wing |
Adjust the voltage level of your devices with this step down MCP16311T-E/MS DC to DC converter from Microchip Technology. This converter's single output can produce a current up to 1(Min) A. The best way to provide power to your application is by using this, which needs a voltage of at least 4.4 V and no higher than 30 V. With an adjustable output that has a voltage of 2 to 24 V, this is power management at its best. This converter is 95 % efficient. Its switching regulator has a frequency of 500(Typ) kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
| EDA / CAD Models |
