NovTech, IncIOTCENTIPEDE_001-129-0102_KITProgrammable Logic Development Boards and Kits

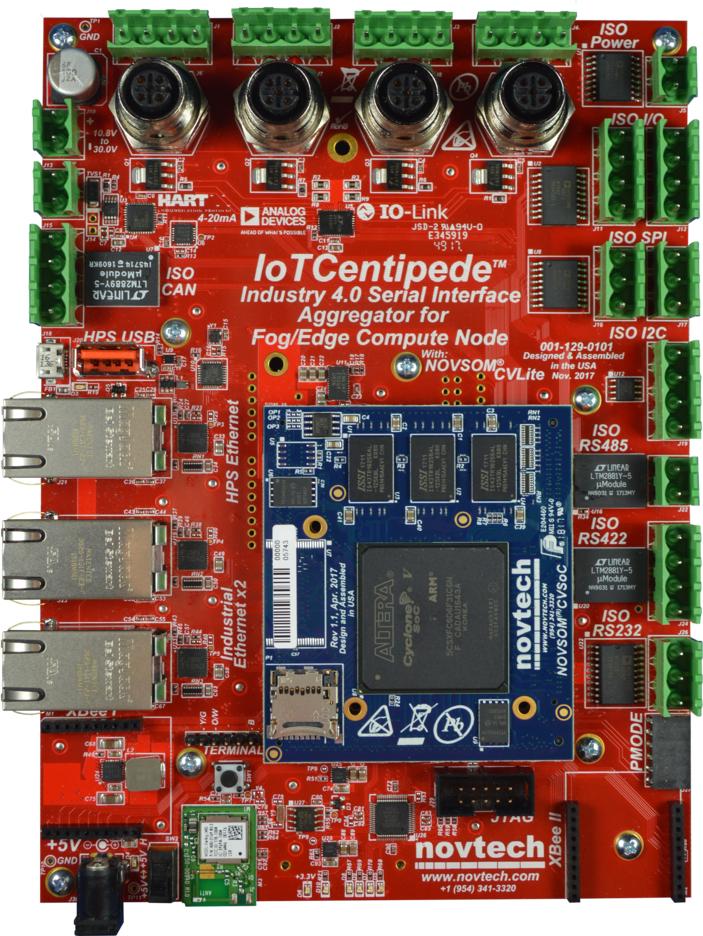

Equipped with a 110K LE FPGA with a Dual-Core Arm® Cortex® A9, the IoTCentipede™ gateway board has the computing capability to aggregate data from multiple sensors, meters and controls.

The IoTCentipede™ serves as an aggregator for a large collection of serial protocols deployed in industrial automation and machinery applications. All serial connectivity ports - UART, I2C, SPI, CAN, IO-Link®, 4-20mA loop - are isolated to allow direct connection to equipment in the real world. Wireless connectivity options include Wi-Fi®, Bluetooth® , ZigBee®, 4G/LTE, and any XBee supported protocols. Data gathered from multiple nodes can be processed in near real-time and sent to remote locations for further analysis or storage. IoTCentipede™ is a development board that can also act as an ideal reference for any new design that requires multiple serial interfaces.

Specifications

• Multi boot support for Intel® Cyclone® V SoC (including recovery boot)
• Serial interfaces
  • Isolated ports: RS232, RS422, RS485, SPI, I2C, CAN, GPIO
  • IO-Link master port x4
  • 4-20mA loop with HART® modem
• High-speed wired connectivity
  • One 1G/100/10 Ethernet PHY connected to HPS (Hard Processor System)
  • Two 1G/100/10 Ethernet PHYs connected to FPGA fabric allowing implementation of Industrial Ethernet,including TSN (Time-Sensitive Networking)
  • USB Host or USB OTG
• Wireless connectivity
  • 802.11/Bluetooth
  • Two XBee modules for ZigBee/Long-Range/4G/LTE
• RTC (Real Time Clock) with battery backup
• Expansion ports
  • Pmod
  • Arduino
  • Dual row 100mil header

Applications

• Equipment upgrading to Industry 4.0
• Programmable Logic Controllers (PLCs)
• Industrial Ethernet gateway
• Production floor
• Office automation
