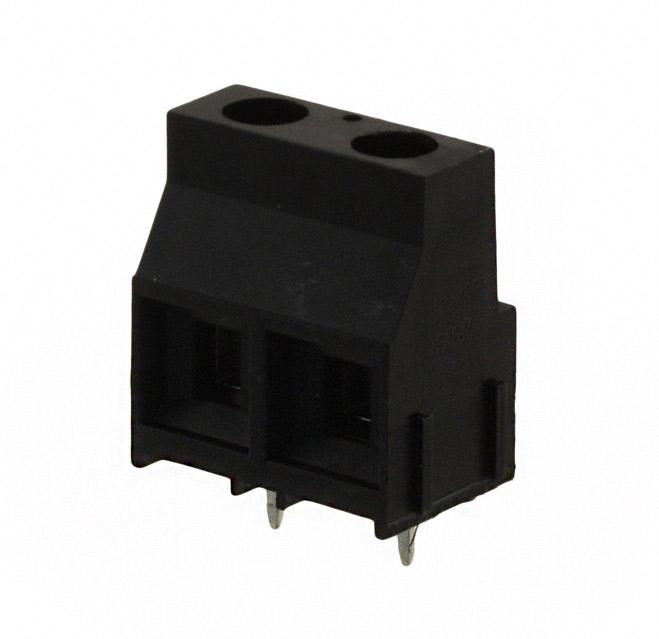

AmphenolESPM02200Connector Terminal Blocks
Conn Terminal Block 2 POS 9.52mm Solder ST Thru-Hole 30A
| Compliant | |
| EAR99 | |
| Unconfirmed | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| Terminal Block | |
| 2 | |
| 9.52 | |
| 1 | |
| 2 | |
| Solder | |
| Straight | |
| 30 | |
| 300V | |
| -40 | |
| 110 | |
| 19.64 | |
| 12.49 | |
| 21.48 | |
| Black | |
| Through Hole |
Connect test equipment together with other components by using this ESPM02200 PCB terminal block from Amphenol. It has a maximum voltage rating of 600 V. Its pitch is 9.52 mm. This is a 1-row connector. It has a straight body orientation. ESPM02200 is housed in polyamide 6/6. This device has a maximum current rating of 30 A. This product is 19.64 mm long, 21.48 mm tall and 12.49 mm deep. It uses the solder termination method. Its wire is 10-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 110 °C.
