Analog DevicesDC2846APower Management Development Boards and Kits

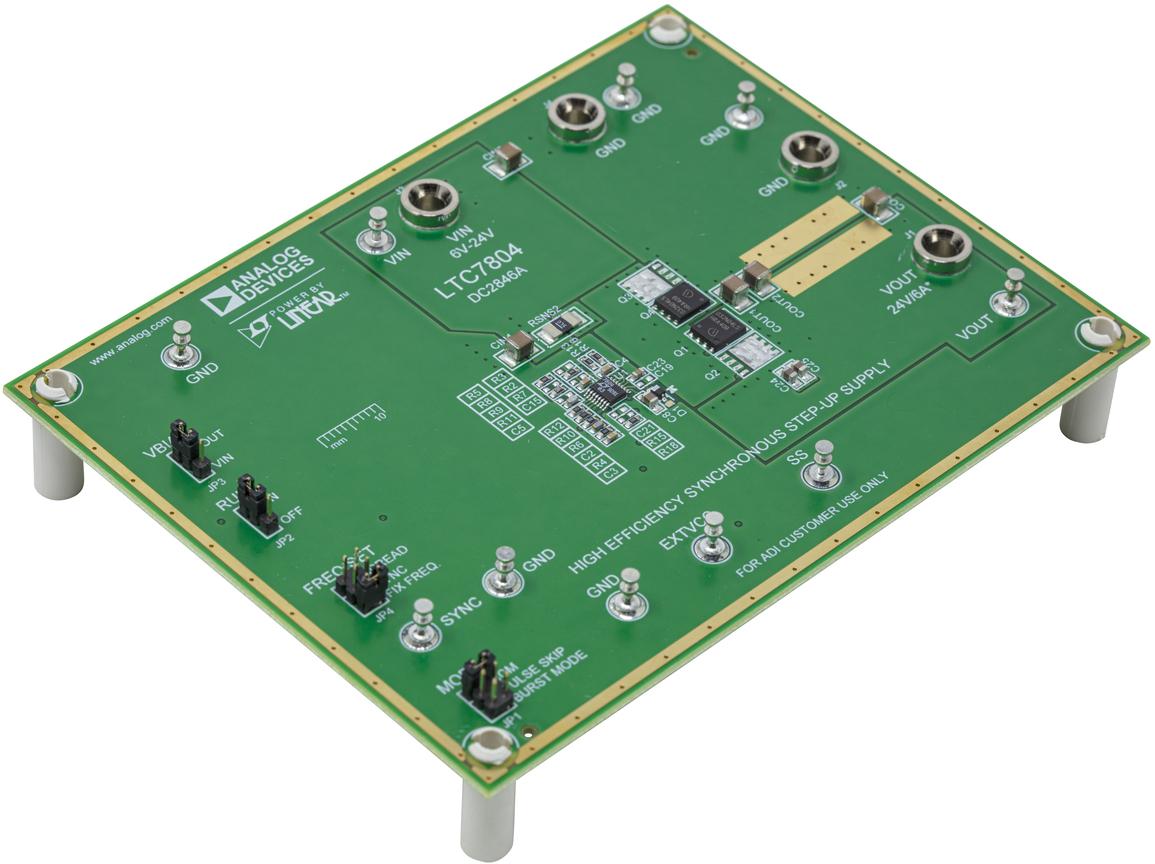

LTC7804 Demo Board, 6V ≥ VIN ≥ 24V, VOUT = 24V @ 6A
LTC7804: 40 V Low IQ, 3 MHz Synchronous Boost Controller
The LTC7804 is a high performance synchronous boost DC-to-DC switching regulator controller.
Key Features and Benefits
- • Synchronous boost results in higher current and efficiency results in a smaller solution size
- • 100% duty cycle and PassThru mode eliminates switching loss in preboost applications
- • Spread spectrum frequency modulation reduces EMI
Applications
- • Automotive: preboost for powering infotainment systems in start-stop applications
- • Instrumentation: electronic test and measurement equipment
- • Healthcare: medical and life science
- • Aerospace and Defense: avionics
Evaluation Board
The LTC7804 can be evaluated with the DC2846A.
Block Diagrams and Tables
Related Products
LTC7804EUD#PBF
LTC7804IMSE#PBF
LTC7804HMSE#PBF
LTC7804HUD#PBF
LTC7804EMSE#PBF
LTC7804IUD#PBF
LTC7804IMSE#TRPBF
LTC7804EMSE#TRPBF
LTC7804IUD#TRPBF
LTC7804EUD#TRPBF
LTC7804HMSE#TRPBF
LTC7804IMSE#WTRPBF
LTC7804IUD#WTRPBF
LTC7804HMSE#WTRPBF
LTC7804HUD#WTRPBF
LTC7804HUD#TRPBF
LTC7804EMSE#WPBF
LTC7804EMSE#WTRPBF
| Compliant | |
| EAR99 | |
| Active | |
| DC2846A | |
| Automotive | No |
| PPAP | No |
| Demonstration Circuit | |
| DC to DC Controller | |
| 1 | |
| 23.52 to 24.48 | |
| 150(Max) | |
| 6000 | |
| 6VDC to 24VDC | |
| 500 | |
| 95 | |
| LTC7804 |
