| Compliant | |
| EAR99 | |
| Active | |
| 8536.30.80.00 | |
| Automotive | No |
| PPAP | No |
| Fuse Holder | |
| Cartridge | |
| 5 X 20 | |
| 1 | |
| 10@VDE|16@(CSA/UL) | |
| 400VAC@(CSA/UL)|250VAC@VDE | |
| -40 | |
| 85 | |
| Pin | |
| Box | |
| 12.5 | |
| 12.5 | |
| 32.6 | |
| 4.66 | |
| 32.6 | |
| Thermoplastic | |
| Black | |
| Through Hole |

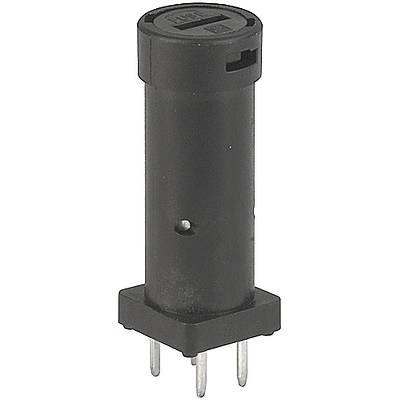

Use this fuse holder 3101.0040 from Schurter to incorporate a fuse in your circuit so that it operates according to requirement. This device has a current rating of 16 A @ (CSA/UL) and 10@VDE. The voltage rating is 400VAC@(CSA/UL)|250VAC@VDE. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 12.5 mm long, 32.6 mm tall and 12.5 mm deep.
