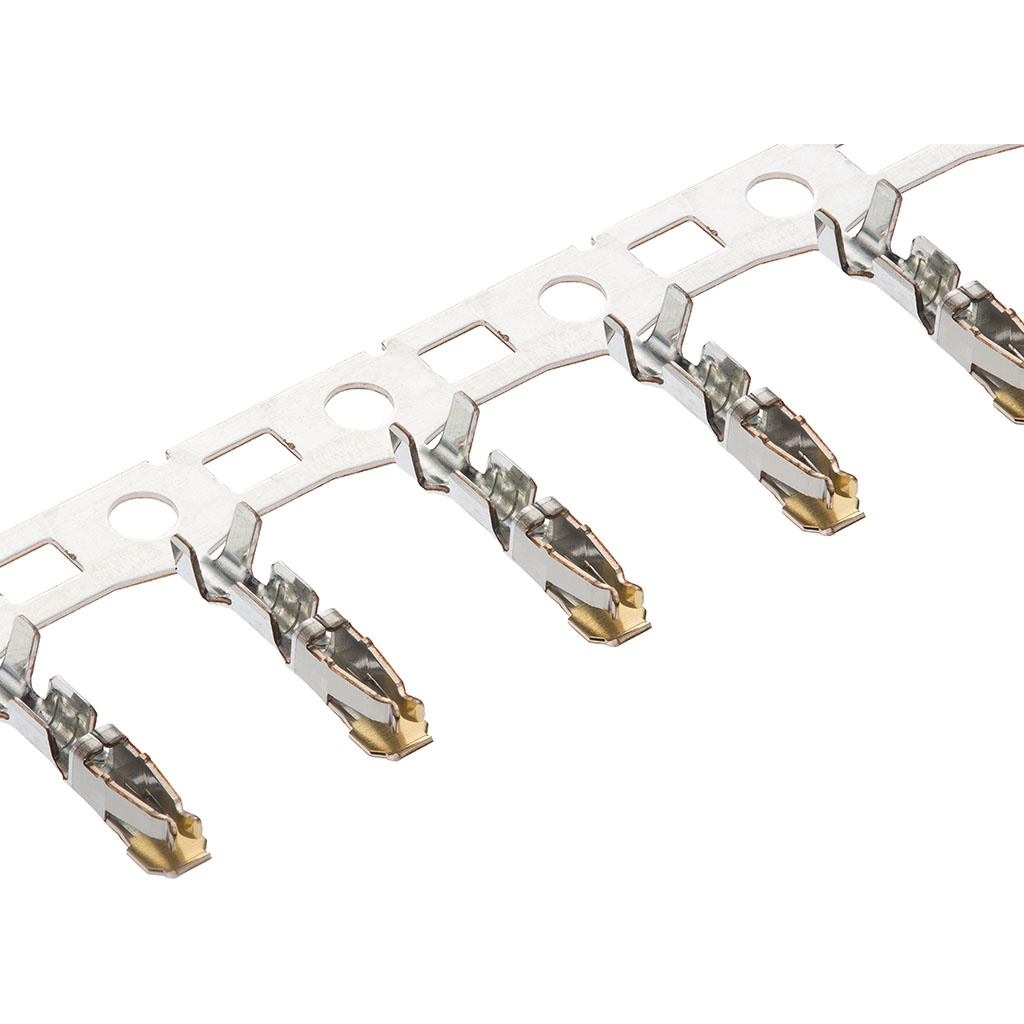

Molex2053425128 | Pico-Lock 2.0 W/B REC TERM PL AWG#24-26Connector Contact

The compact Pico-Lock 2.0mm pitch wire-to-board system is one of the first to provide a side positive-lock design in a low-profile and high-current system. This space-saving connector is available in 2 to 6 circuits and can reach up to a maximum of 6.5A when using 20 gauge wire for the 2 circuit configuration.

Features and Advantages

• •  Current rating of up to 6.5A for 2 circuit connector when using 20 gauge wire
• •  Ultra-low profile of 2.00mm provides space savings
• •  Side positive locks ensure securing mating retention
• •  Top friction locks provide additional mating retention
• •  Beveled header pin design offers smoother mating and pin-and-contact protection
• •  Polarization/mating guide features prevent mismating and facilitate mating
• •  Wide robust fitting nails offer secure PCB retention and additional mechanical stability
• •  1.50mm pitch sizes also available

Markets and Applications

•  Automotive
• •  Infotainment
• •  Interior electronics
• •  Heads-up display
• •  Control units

•  Consumer
• •  LED/LCD TVs
• •  Notebook PCs
• •  Gaming equipment

•  Industrial
• •  Smart meters
• •  Factory automation
• •  Power supplies

•  Telecommunications/Networking
• •  Wireless modems
• •  Servers
