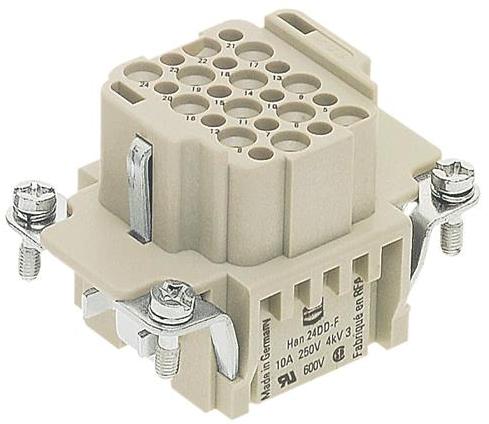

HARTING Technology Group09160243101Connector Rectangular
Conn Rectangular F 24 POS Crimp ST Panel Mount Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| RCP | |
| 24 | |
| 6 | |
| Crimp | |
| Straight | |
| F | |
| 10 | |
| 250V | |
| 10000 | |
| -40 | |
| 125 | |
| 500 | |
| Bag | |
| 8.4 | |
| 50.8 | |
| 36.1 | |
| 33.8 | |
| Panel Mount |
Use this 09160243101 discrete wire housing from Harting for a durable connection between discrete wires. This F connector has 24signal / 1ground F contacts. This is a 6-row connector. It has a female type gender. It has a maximum voltage rating of 250 V. It has a straight body orientation. This device has a maximum current rating of 10 A. This rectangle connector has an operating temperature of -40 to 125 °C. This product is 51 mm long, 34 mm tall and 36.1 mm deep. 09160243101 is housed in polycarbonate.
