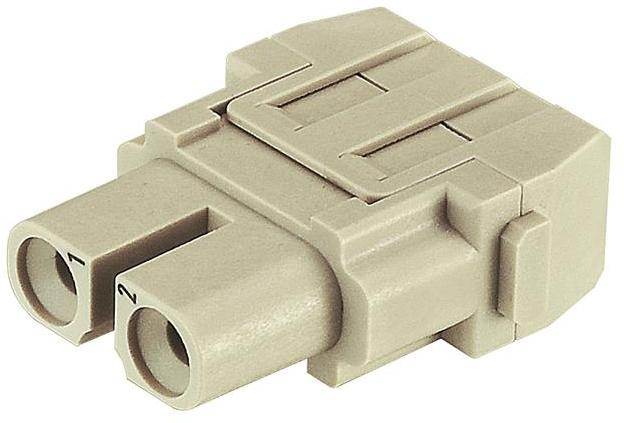

HARTING Technology Group09140023102Connector Rectangular
Conn Rectangular F 2 POS Crimp ST Cable Mount Han-Modular®
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| RCP | |
| 2 | |
| 1 | |
| Crimp | |
| Straight | |
| F | |
| 40 | |
| 1000V | |
| 10000 | |
| 1 | |
| -40 | |
| 125 | |
| 500 | |
| Yes | |
| 11 | |
| 34.2 | |
| 14.6 | |
| 42.4 | |
| Han-Modular® | |
| Cable Mount | |
| Copper Alloy |
This 09140023102 discrete wire housing from Harting can also provide a locking mechanism for conditions where a lot of mechanical jarring is seen. This F connector has 2 F contacts. It has a maximum voltage rating of 1000 V. It has a straight body orientation. It has a female type gender. This is a 1-row connector. This device has a maximum current rating of 40 A. This product is 34.2 mm long, 14.6 mm tall and 42.4 mm deep.
| EDA / CAD Models |
