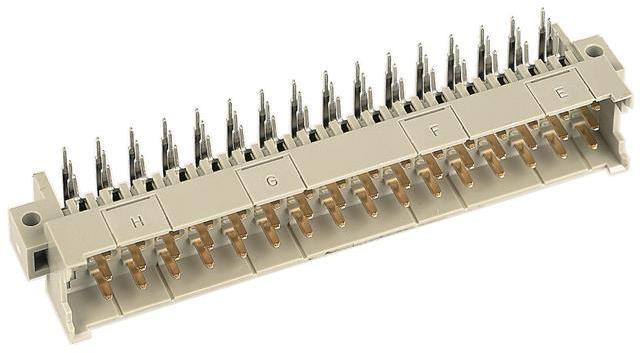

HARTING Technology Group09061486921Connector Backplane
Conn DIN 41612 M 48 POS 5.08mm Solder RA Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| M | |
| 48 | |
| Solder | |
| 5.08 | |
| Right Angle | |
| 6 | |
| 1000000 | |
| 15 | |
| -55 | |
| 125 | |
| 400 | |
| 93.9 | |
| 22 | |
| 14.7 | |
| Through Hole |
Harting's din 41612 09061486921 backplane connector is a great component to use when you want to relay data bits via parallel electrical lines. This M connector has 48 contacts that are plated with gold over palladium nickel over nickel. Its pitch is 5.08 mm. This is a 3-row connector. It has a right angle body orientation. It has a male type gender. This device has a maximum current rating of 6 A. It uses the solder termination method. This product is 93.9 mm long, 14.7 mm tall and 22 mm deep.
