コネクタヘッダーとPCBレセプタクル

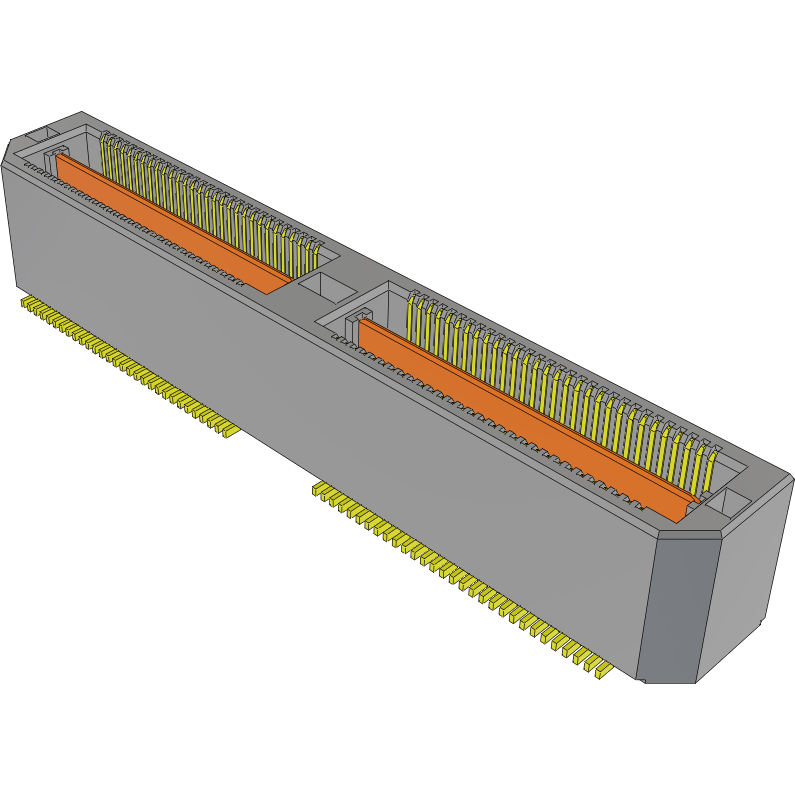

QTH-060-02-F-D-A-TR

Conn Micro High Speed Terminal Strip HDR 120 POS 0.5mm Solder ST Top Entry SMD T/R

Samtec

製品技術仕様

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Micro High Speed Terminal Strip

• Gender

  HDR

• Number of Contacts

  120

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.5

• Body Orientation

  Straight

• Row Spacing (mm)

  3.94

• Speed Rating (Gbps)

  25

• Maximum Current Rating (A)

  (2/25)/Contact

• Maximum Voltage Rating

  247VDC|175VAC

• Insulation Resistance (MOhm)

  5000

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tape and Reel

• Product Length (mm)

  40.01

• Product Depth (mm)

  7.11

• Product Height (mm)

  7.26

• Mounting

  Surface Mount
