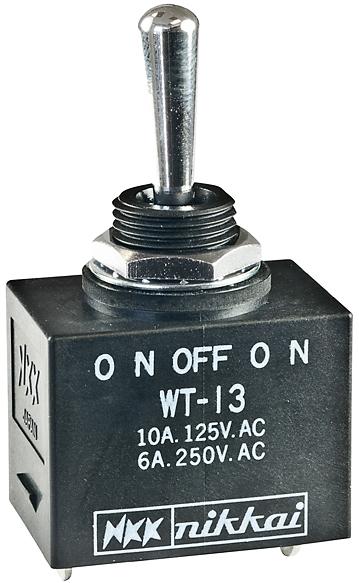

NKK SwitchesWT13SSwitch Toggle
Switch Toggle ON OFF ON SPDT Round Lever Solder Lug 10A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Environmentally Sealed | |
| Round Lever | |
| SPDT | |
| ON OFF ON | |
| Threaded | |
| 10@125VAC 30VDC | |
| 1500VAC | |
| 200 | |
| 10 | |
| 15000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 3 | |
| 4.8 | |
| Ring(Natural Rubber)/Ring(Nitrile Butadiene Rubber)/Epoxy/Environmental | |
| Front Panel/Behind Panel/Base/N/A | |
| Ring(Natural Rubber)/Ring(Nitrile Butadiene Rubber)/Epoxy/Environmental | |
| IP67 | |
| Resin | |
| Straight | |
| -30 | |
| 70 | |
| M12 x 1 | |
| 28.8 | |
| 8.6 | |
| 19.4 | |
| 23.3 | |
| 28.8 | |
| 19.4 | |
| 54.2 |
The environmentally sealed WT13S toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 10 A @ 125VAC 30VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 70 °C. The WT13S toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 28.8 mm long, 54.2 mm tall and 19.4 mm deep.
| EDA / CAD Models |
