SamtecTSW-203-07-G-S连接器插头及 PCB 插座

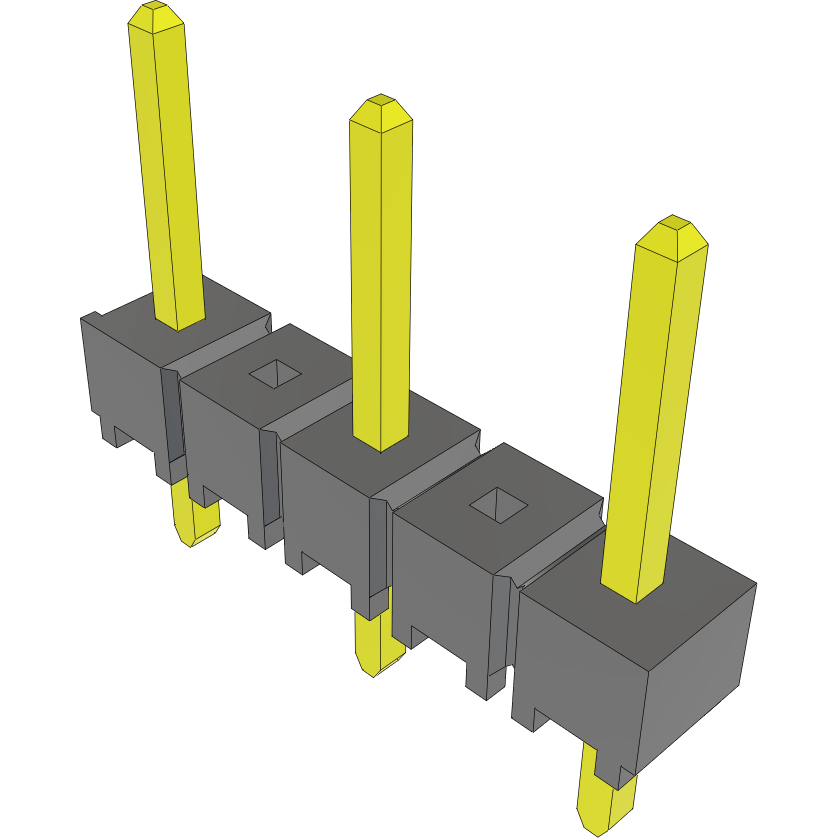

Use this unshrouded TSW-203-07-G-S header connector from Samtec where IDC ribbon cables are used. This HDR connector's 3 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 5.08 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. TSW-203-07-G-S is housed in black polyester. It uses the solder termination method. This product is 12.7 mm long, 8.38 mm tall and 2.54 mm deep.
