SamtecTSM-108-01-L-DH-A-003-PTR连接器插头及 PCB 插座

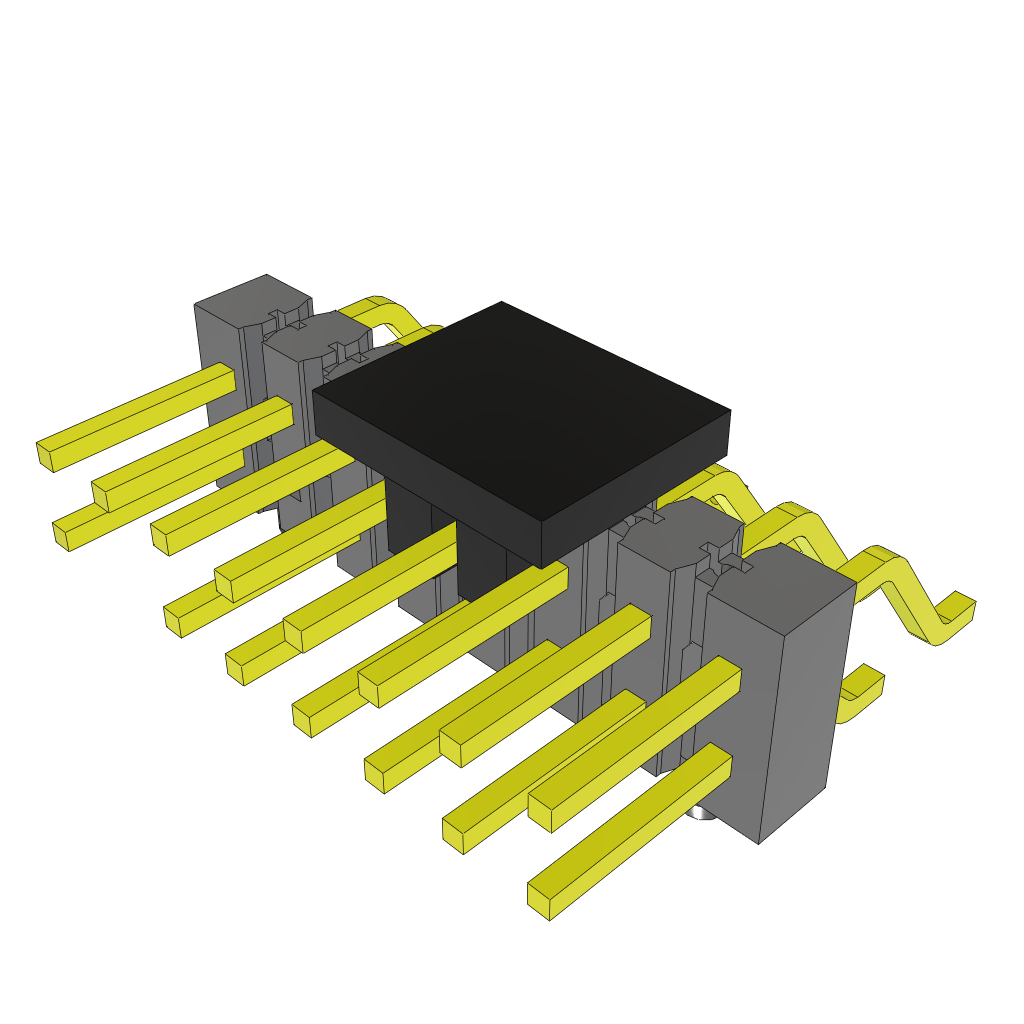

This unshrouded TSM-108-01-L-DH-A-003-PTR header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector's 16 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. It has a maximum voltage rating of 475 VAC. This device has a maximum current rating of 5.4 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 20.32 mm long, 6.1 mm tall and 16.25 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSM-108-01-L-DH-A-003-PTR is housed in black liquid crystal polymer.
