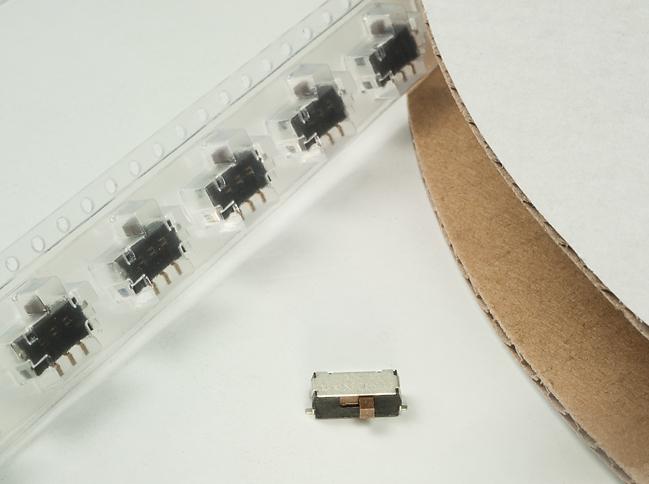

NKK SwitchesSS312SAH4-RSwitch Slide
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 10000Cycles Gull Wing SMD T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| Automotive | No |
| PPAP | No |
| Side Slide | |
| SPDT | |
| ON None ON | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 100 | |
| 50 | |
| 10000 | |
| 10000 | |
| 2 | |
| 1 | |
| Surface Mount | |
| Gull Wing | |
| 3 | |
| 1.4 | |
| 2 | |
| Polyphenylene Sulfide | |
| Phosphor Bronze | |
| Right Angle | |
| -25 | |
| 85 | |
| Tape and Reel | |
| Ultra-Miniature | |
| 9.2 | |
| 4 | |
| 2.9 | |
| 10.5 | |
| 7.45 | |
| 3.05 |
This SS312SAH4-R slide switch from NKK Switches is great for turning your circuit on and off. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This slide switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The SS312SAH4-R slide switch has a gull wing termination style. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 10.5 mm long, 3.05 mm tall and 7.45 mm deep.
