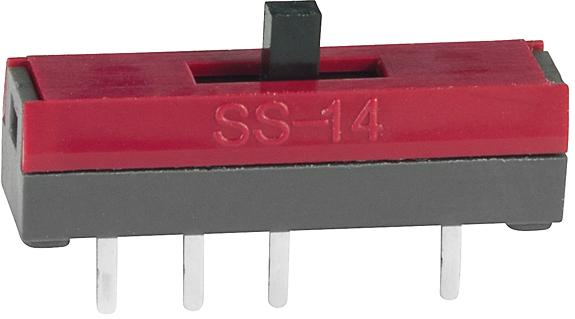

NKK SwitchesSS14MDP2Switch Slide
Switch Slide ON ON ON SP3T Top Slide 0.1A 30VDC 10000Cycles PC Pins Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| Automotive | No |
| PPAP | No |
| Top Slide | |
| SP3T | |
| ON ON ON | |
| 0.1@30VDC | |
| 500VAC | |
| 100 | |
| 20 | |
| 10000 | |
| 10000 | |
| 2 | |
| 1 | |
| Through Hole | |
| PC Pins | |
| 4 | |
| 3 | |
| Phenolic Resin | |
| Thermoplastic | |
| Straight | |
| -15 | |
| 60 | |
| Ultra-Miniature | |
| 15.8 | |
| 4 | |
| 4.5 | |
| 15.8 | |
| 4 | |
| 6.5 |
This SS14MDP2 slide switch from NKK Switches is great for turning your circuit on and off. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SP3T configuration. This slide switch has a minimum operating temperature of -15 °C and a maximum of 60 °C. The SS14MDP2 slide switch has a PC pin termination style. This product is 15.8 mm long, 6.5 mm tall and 4 mm deep. The maximum DC voltage rating is 30 VDC.
