| 欧盟RoHS指令 | Compliant |
| 美国出口管制分类ECCN编码 | EAR99 |
| 环保无铅 | Active |
| 美国海关商品代码 | EA |
| Automotive | No |
| PPAP | No |
| 产品类别 | Power MOSFET |
| Configuration | Single Quad Drain |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain-Source Voltage (V) | 12 |
| Maximum Gate-Source Voltage (V) | ±10 |
| Maximum Continuous Drain Current (A) | 4 |
| Maximum Drain-Source Resistance (mOhm) | 34@4.5V |
| Typical Gate Charge @ Vgs (nC) | 14.1@4.5V|24@8V |
| Maximum Power Dissipation (mW) | 1600 |
| Typical Fall Time (ns) | 985|1015 |
| Typical Rise Time (ns) | 420|210 |
| Typical Turn-Off Delay Time (ns) | 1325|2100 |
| Typical Turn-On Delay Time (ns) | 160|72 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Surface Mount |
| Package Height | 1(Max) |
| Package Width | 1.25 |
| Package Length | 2 |
| PCB changed | 6 |
| Standard Package Name | SOT |

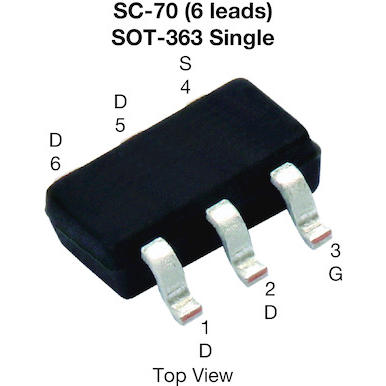

| Supplier Package | SC-70 |
| Pin Count | 6 |
