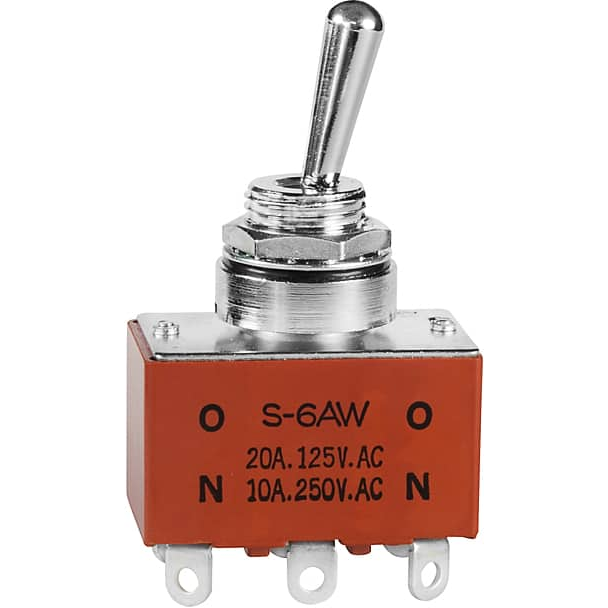

NKK SwitchesS6AWSwitch Toggle
Switch Toggle ON None ON DPDT Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Medium Capacity | |
| Round Lever | |
| DPDT | |
| ON None ON | |
| Threaded | |
| 20@125VAC 30VDC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 6 | |
| 5.7 | |
| Panel | |
| Panel | |
| IP67 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 31.2 | |
| 12.5 | |
| 18.6 | |
| 20 | |
| 31.2 | |
| 18.6 | |
| 55.7 |
This medium capacity S6AW toggle switch from NKK Switches is the best at minimizing lag between switches in your design. It has a DPDT configuration. This device has a maximum current rating of 20 A @ 125VAC 30VDC. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S6AW toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 31.2 mm long, 55.7 mm tall and 18.6 mm deep.
