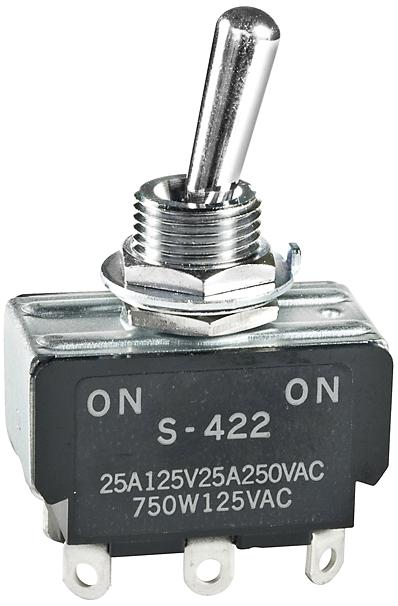

NKK SwitchesS422Switch Toggle
Switch Toggle ON None ON DPDT Round Lever Solder Lug 25A 250VAC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Medium/High Capacity | |
| Round Lever | |
| DPDT | |
| ON None ON | |
| Threaded | |
| 25@250VAC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 6 | |
| 5.7 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 33.2 | |
| 12 | |
| 19 | |
| 19.4 | |
| 33.2 | |
| 19 | |
| 54.6 |
The medium/high capacity S422 toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 25 A @ 250VAC. It has a DPDT configuration. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S422 toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC. This product is 33.2 mm long, 54.6 mm tall and 19 mm deep.
