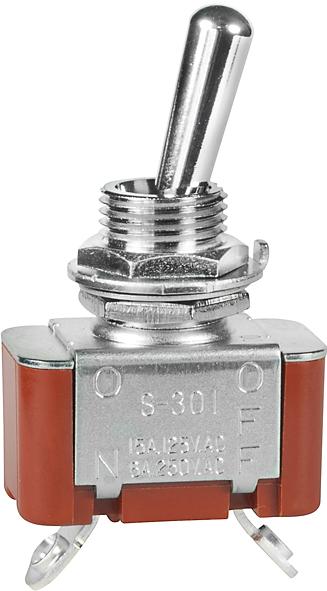

NKK SwitchesS301Switch Toggle
Switch Toggle ON None OFF SPST Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Medium/High Capacity | |
| Round Lever | |
| SPST | |
| ON None OFF | |
| Threaded | |
| 20@30VDC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 2 | |
| 9.6 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 28.5 | |
| 12 | |
| 16 | |
| 17.4 | |
| 28.5 | |
| 16 |
This medium/high capacity S301 toggle switch from NKK Switches is the best at minimizing lag between switches in your design. It has a SPST configuration. This device has a maximum current rating of 20 A @ 30VDC. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S301 toggle switch has a solder lug termination style. This product is 28.5 mm long and 16 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
